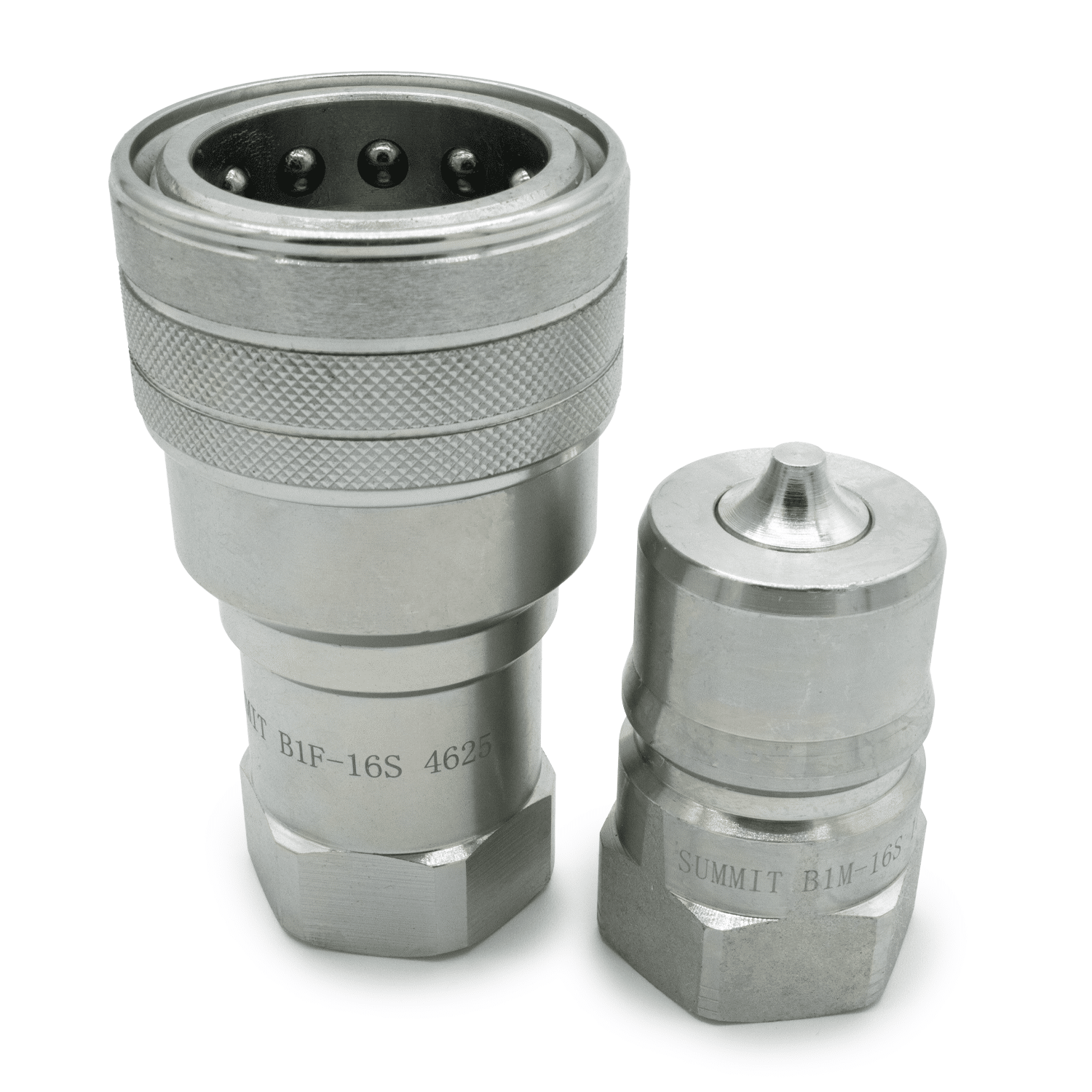

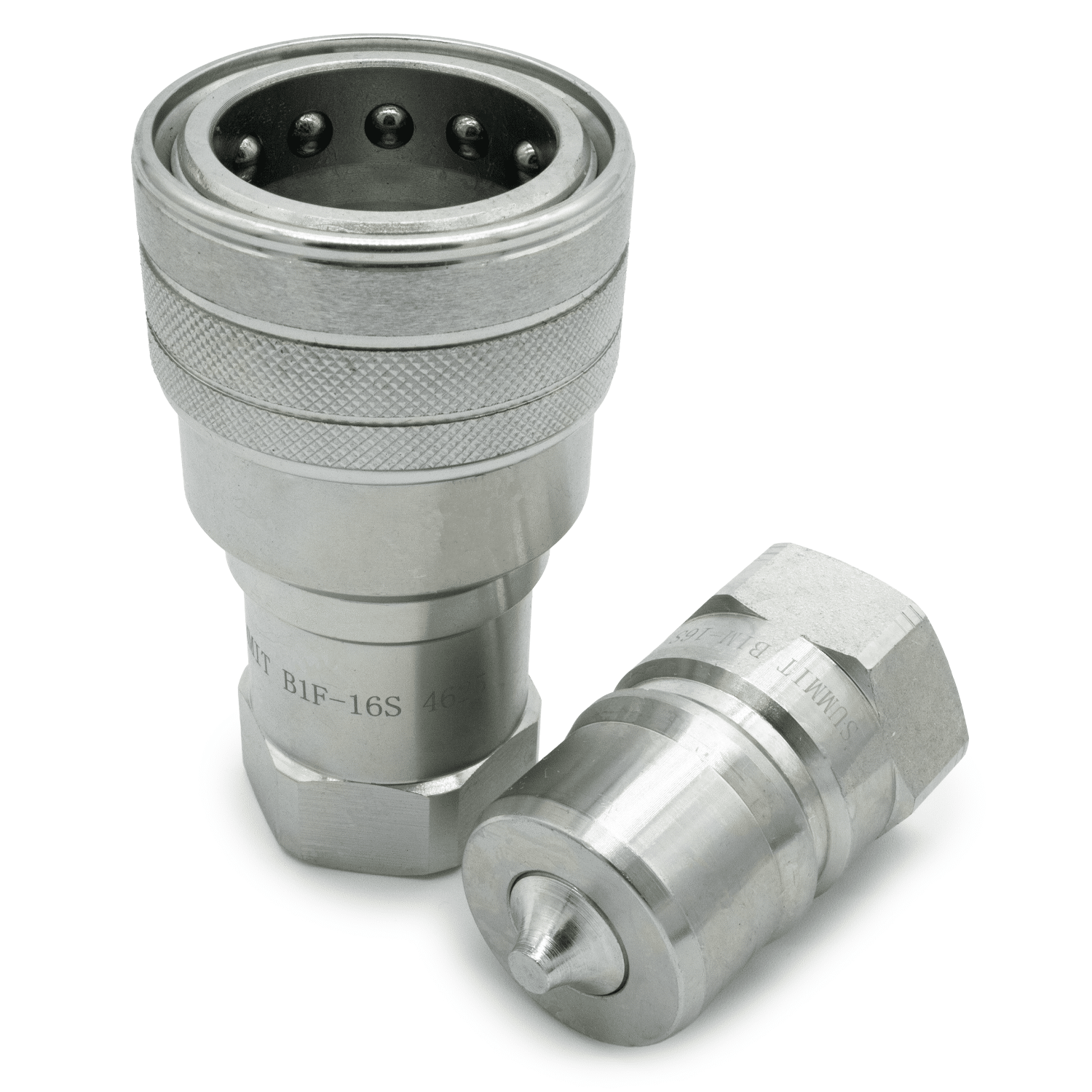

1″ SAE ISO 7241-B Quick Disconnect Hydraulic Coupler Set

Size: 1″ Body, 1″ SAE Thread, Poppet Valve

Benefits:

• Body: Carbon Steel
• Finishing: ZN-Fe (CRIII) Plating
• Seals: NBR standard seals
• Spring Material: 304 Stainless Steel
• Radial Locking Balls
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 B series couplings
• Temperature Range: -13°F to +257°F

Features:

• 2,900 PSI Rating
• Nominal Flow Rate: 50 GPM
• Max Flow Rate: 69 GPM
• Male Length: 3” (76.2mm)
• Female Length: 4.18” (106.2mm)
• Hex: 1.62” (41.1mm)

Interchangeable with:

Manufacturer	Male	Female
SUMMIT	B1M-16S	B1F-16S
Parker 60 Series	H8-63-T16	H8-62-T16
Safeway S10 Series	S101-8-16	S105-8-16
Faster HNV	HNV 1-1SAE M	HNV 1-1SAE F
Snap-Tite 72 Series	72N16-16EF	72C16-16EF
Eaton / Aeroquip FD45	FD45-1168-16-16	FD45-1169-16-16
Hansen HK Series	8KP16	8-HP16

What’s Included:

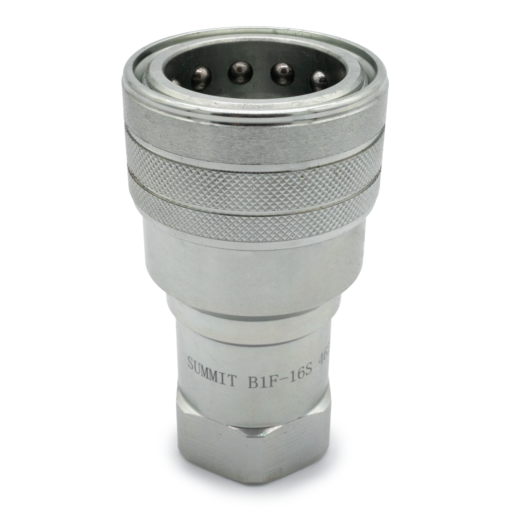

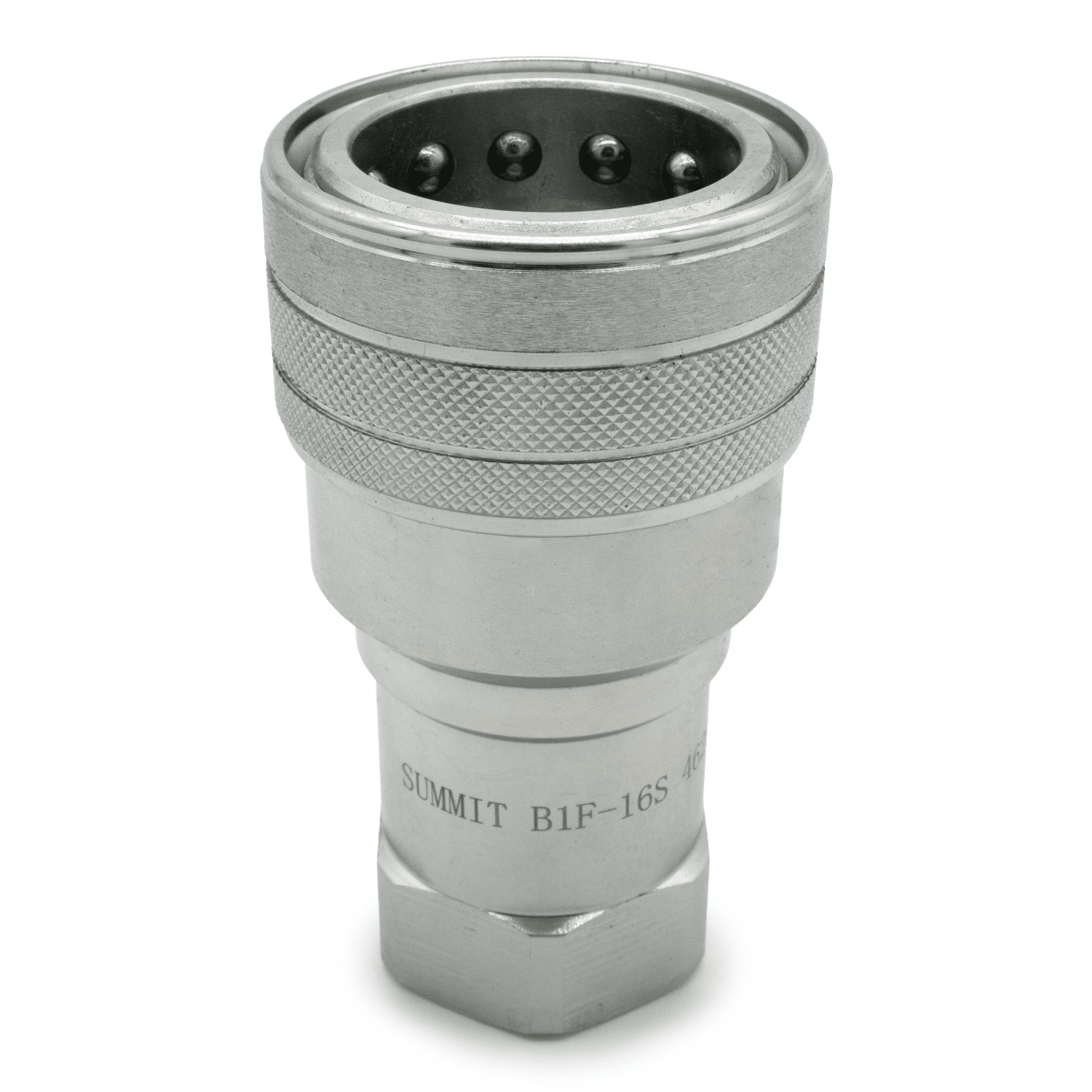

• Female Coupler

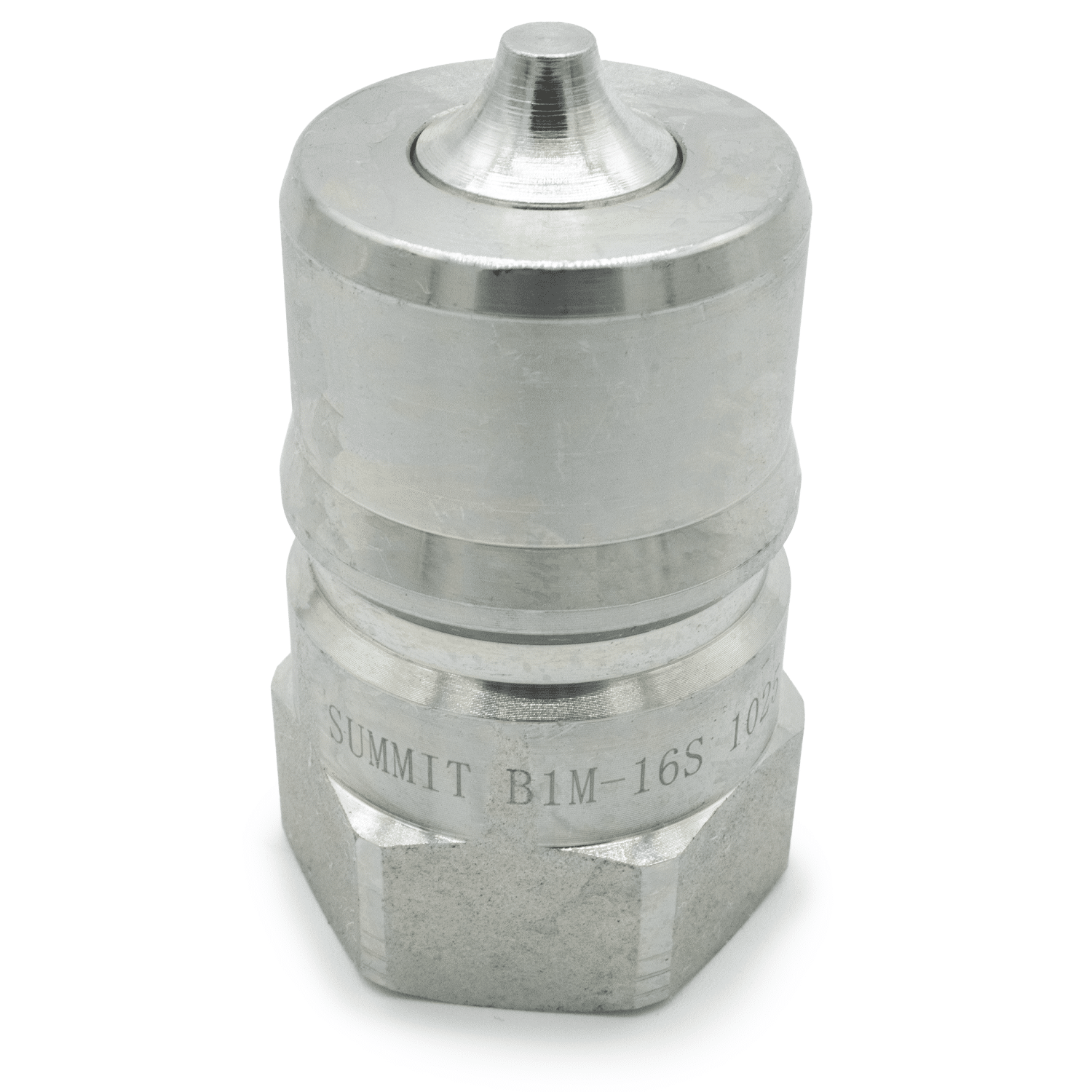

• Male Coupler
