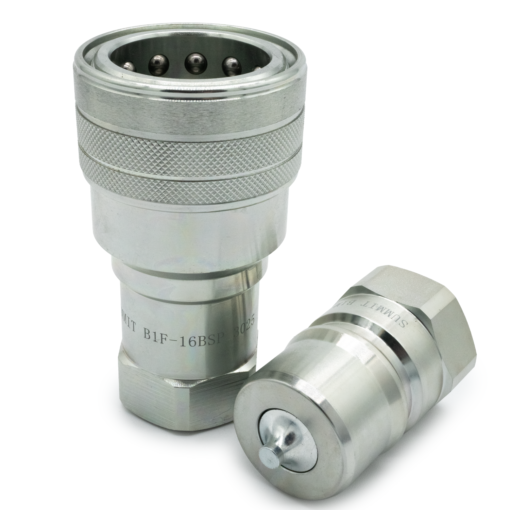

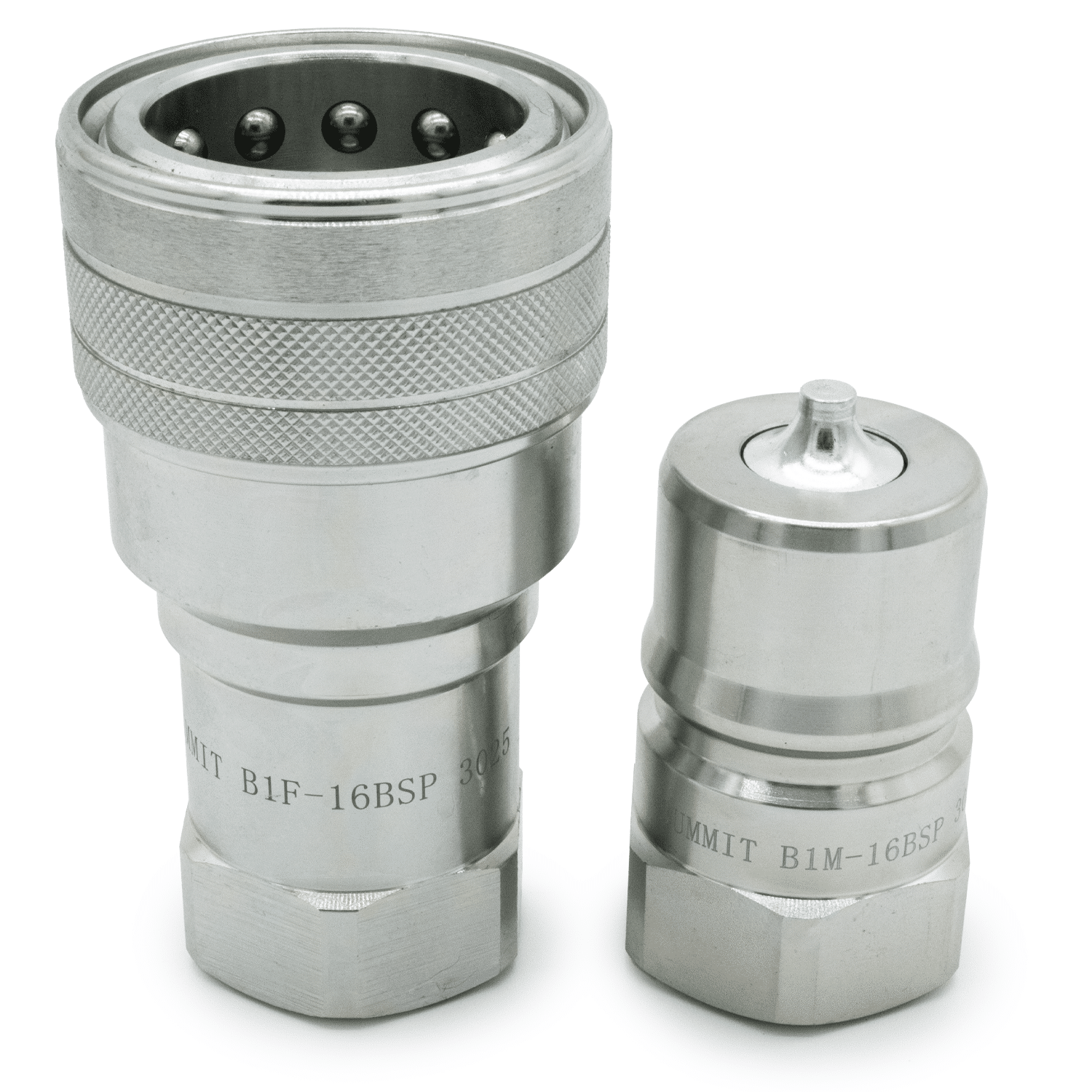

1″ BSP ISO 7241-B Quick Disconnect Hydraulic Coupler Set

Size: 1″ Body, 1″ BSP Thread, Poppet Valve

Benefits:

• Body: Carbon Steel
• Finishing: ZN-Fe (CRIII) Plating
• Seals: NBR standard seals
• Spring Material: 304 Stainless Steel
• Radial Locking Balls
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 B series couplings
• Temperature Range: -13°F to +257°F

Features:

• 3,625 PSI Rating
• Nominal Flow Rate: 50 GPM
• Max Flow Rate: 69 GPM
• Male Length: 2.89” (73.4mm)
• Female Length: 4.20” (106.7mm)
• Hex: 1.62” (41.1mm)

Interchangeable with:

Manufacturer	Male	Female
SUMMIT	B1M-16BSP	B1F-16BSP
Parker 60 Series	H8-63-BSPP	H8-62-BSPP
Faster HNV	HNV 1 GAS M	HNV 1 GAS F
Snap-Tite 72 Series	72N16-16RP	72C16-16RP
Hansen HK Series	8KP36BS	8HP36BS
Dixon H Series	H8BF8	8HBF8

What’s Included:

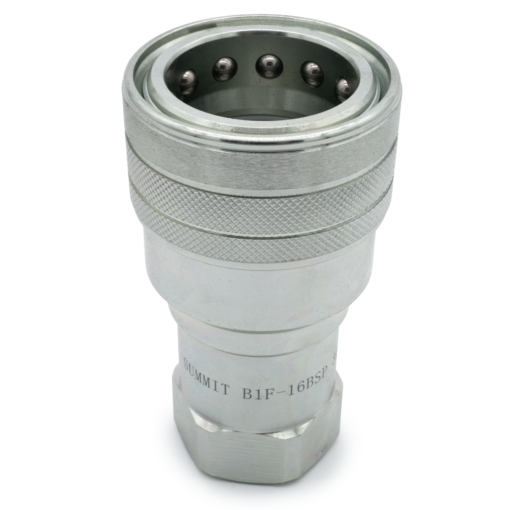

• Female Coupler

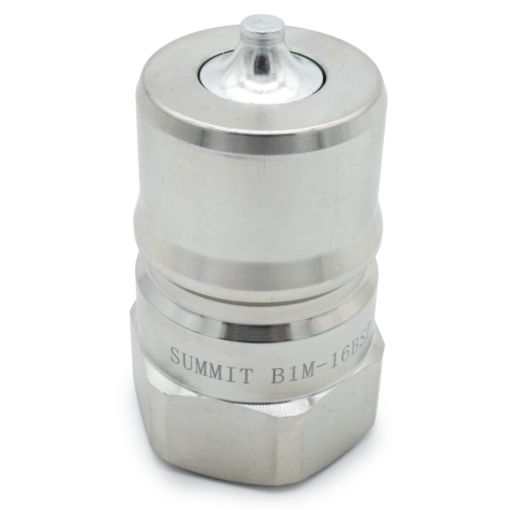

• Male Coupler
