Hydraulic Directional Control Valve for Tractor Loader w/ Joystick, 2 Spool (Single Float Spool Optional), 11 GPM

Monoblock Hydraulic Directional Control Valve for Tractor Loader w/ Joystick, 2 Spool (Single Float Spool Optional), 11 GPM

SKU: P40G-2A1-J

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.

Common Uses:

• Operate hydraulic cylinders (Double-Acting or Single-Acting)
• Operate hydraulic motors (“D” Spool Required)
• Install rear remotes on a tractor

Benefits:

• 2 Spool valve with compact design allows for installations in tight areas
• All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
• Used for open center systems (Pump to Tank Flow) – closed center option available
• Anti-drop load checks on each spool
• Precision ground and hard chrome-plated spools assure a long life
• High-tensile strength cast iron monoblock construction
• SAE O-Ring ports ensure solid seal and prevent blockages
• Capable of closed center or Power Beyond (conversion plug required)
• Vertical or horizontal handle mount
• Adjustable Relief Valve Range: 1500 to 3625 PSI
• Preset Pressure Relief: 2610 PSI
• Used as motor or single-acting spool possible (#8 SAE port plug required)

Features:

• Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
• Flow Rating: 11 GPM (40 l/min)
• A & B Work Ports: #8 SAE O-Ring (3/4”-16) Thread
• Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
• Outlet Port: #10 SAE O-Ring (7/8”-14) Thread
• 2 – 5/16” Mounting Holes
• Single Float Spool option available for raise & lower bucket
• Made in Europe

Will this valve work for my application?

First, you’ll need to answer the following questions:

1. Is the flow through this valve less than 11 GPM? If not, then we have larger P80 valves that can accommodate up to 21 GPM. If installing on a tractor please check tractor-data.com, it will say under the hydraulics – “Pump Flow” – of the data sheet. The GPM flow may be printed on the pump itself.
2. Do you have an open-center hydraulic system? If you’re installing this on a tractor please check tractor-data.com, it will say under the hydraulics of the data sheet. These valves are setup for use on open-center hydraulic systems. If you do have a closed-center system, you’ll need to get the closed center adapter plug. NOTE: None of our valves have load-sensing capabilities.
3. Do you have other valves downstream from this valve (Examples include: Other Control Valves, Rear Remote Valve, Backhoe Valve, 3-Point Valve)? If so, you’ll need the power beyond adapter sleeve to provide pressure and flow to those valves. Note: This is only needed on open-center hydraulic systems. If you have a closed-center system, you will tee into a pressure line to connect other valves.

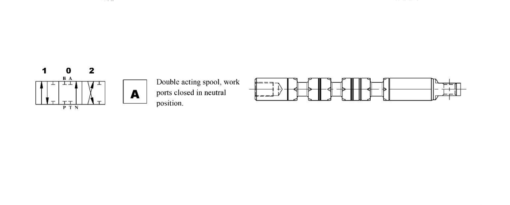

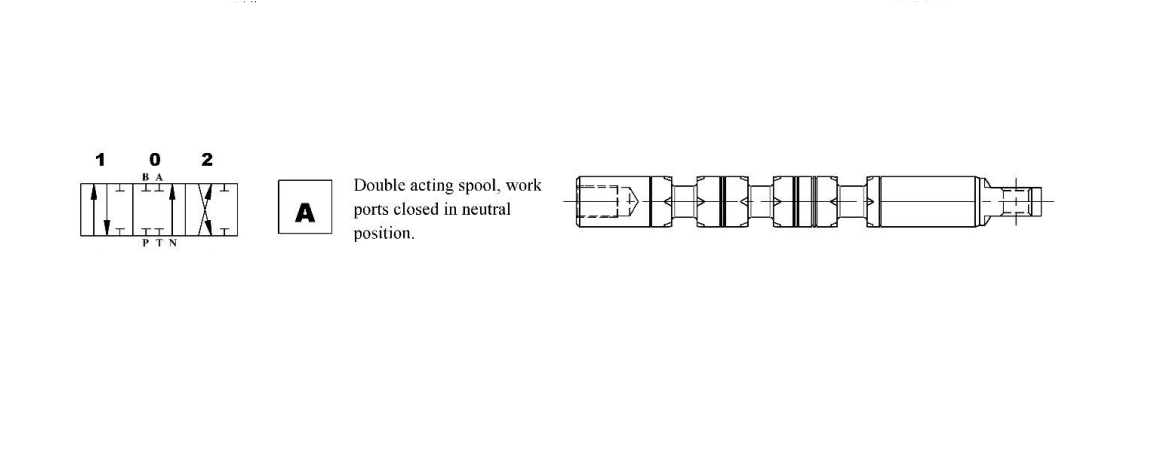

4. Are you operating a hydraulic cylinder or a hydraulic motor? If you’re operating a hydraulic cylinder, you’ll need to get “A” spools for double acting cylinders. If you’re operating a hydraulic motor you’ll need “D” spools for motor control. Note: “D” spools cannot be used for operating hydraulic cylinders and “A” spools cannot be used to operate hydraulic motors.

How do I connect this valve to my hydraulic system?

This valve has a pressure line (Inlet), tank line (outlet), work ports (A/B ports that go to hydraulic cylinder or motor), and optional power beyond port (N Port, used to connect valves downstream). For example, the images below show how to connect this valve below. However, it is possible to connect it in different configurations than shown.
