Top & Tilt Kit, Category 1 Cylinder (Top: 21″ Min – 32″ Max) (Side: 13″ Min – 15″ Max)
| SKU: | TSKC1-009A | TSKC1-009B |
| Category: | 1 | 1 |
| Top Link Max: | 32″ | 32″ |
| Top Link Min: | 21″ | 21″ |
| Top Link Stroke: | 11″ | 11″ |

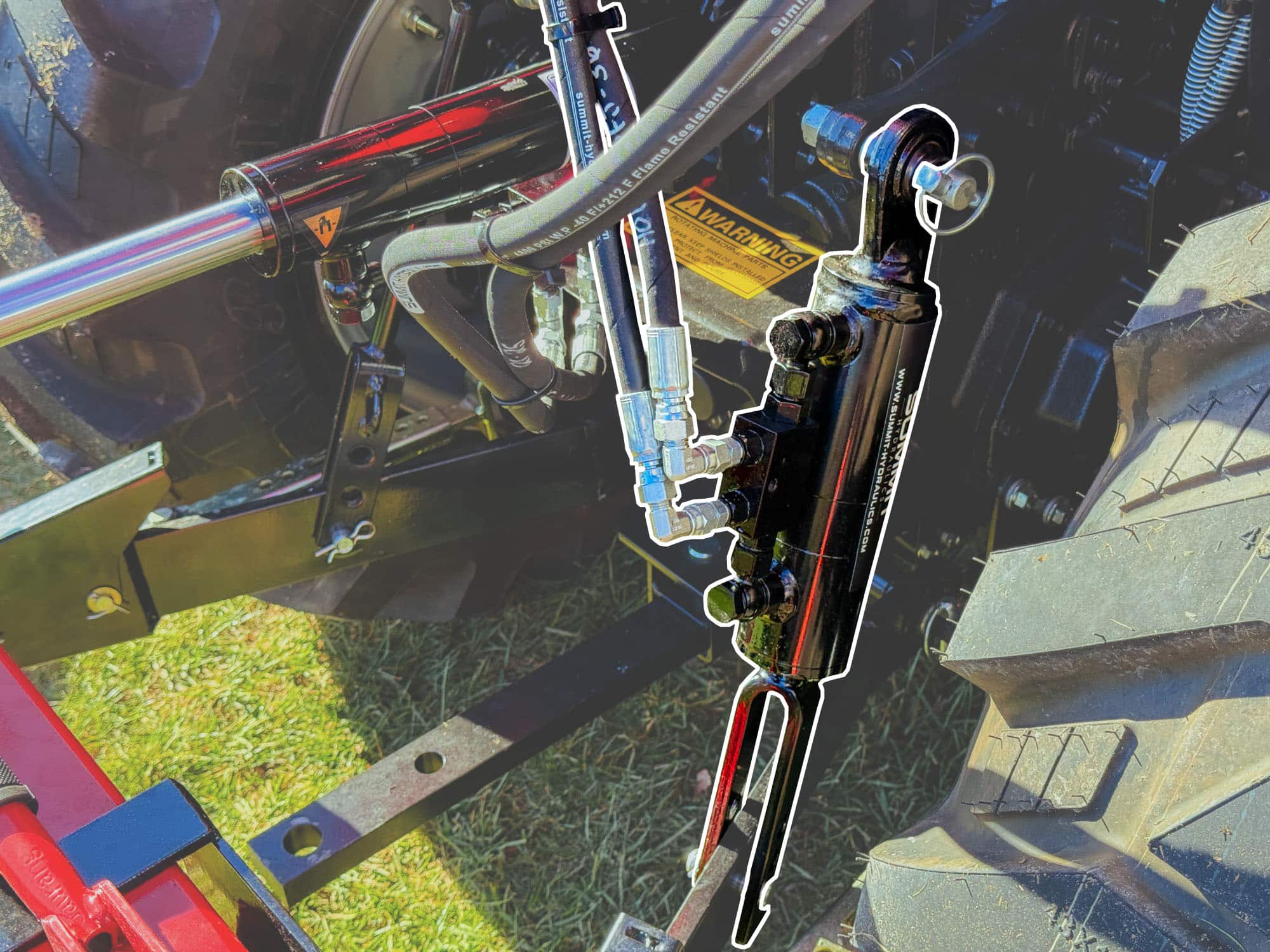

| Side Link Max: | 15″ | 15″ |
| Side Link Min: | 13″ | 13″ |
| Side Link Stroke: | 2″ | 2″ |
For further sizing specifications, please review the top link and side link listings.
- TSKC1-009A: Top Link Kit + Side Link Kit
- TSKC1-009B: Top Link Kit + Side Link Kit
Fitment Chart
| Manufacturer | Model |
| John Deere | 1025R, 1026R, 1023E |
Our Hydraulic Top Link Kits have been thoughtfully designed to cater to a wide spectrum of applications beyond tractors. Whether it’s construction equipment, mining machinery, or other equipment with [Category 1] 3-point compatibility, our kits are the perfect solution to elevate their performance to unmatched levels.
All-in-One Solution:
Our kits include everything you need for a hassle-free installation and operation. With couplers, hoses, adapters, and fittings provided, you can count on a complete package to get you up and running swiftly.
Universal Compatibility:
Designed to fit equipment with Category 1 3-point hitches, our Hydraulic Top & Tilt Kits are engineered with precision to ensure they seamlessly integrate with various machinery, irrespective of the make or model.
Dynamic Adjustments:

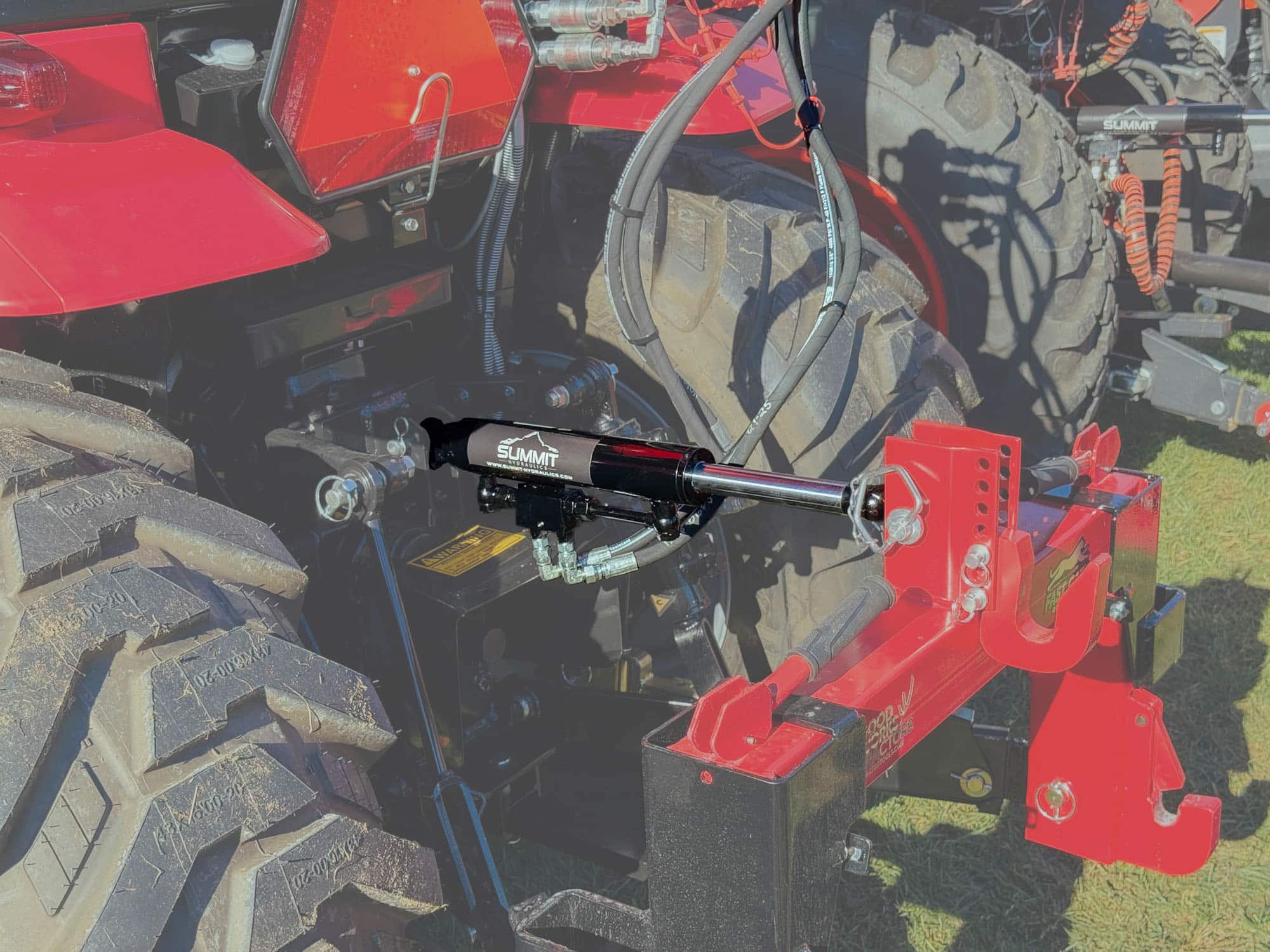

The hydraulic functionality allows for effortless and precise length adjustments of the top link, facilitating easy adaptability to different implements and equipment, ultimately saving you time and effort.
Heavy-Duty Construction:
Crafted from premium materials, our kits are built to withstand the toughest conditions in construction sites, mining operations, and various other rugged environments, ensuring long-lasting durability and consistent performance.
Versatility at Its Best:
Unlock the full potential of your equipment by transforming it into a highly versatile and efficient tool. Our Hydraulic Top Link Kits enable you to optimize performance across a range of tasks, enhancing productivity like never before.
Enhanced Safety:
The hydraulic control eliminates manual adjustments, minimizing the risk of injuries during setup and operation, thus promoting a safer work environment for operators.
Expert Support:
Backed by our experienced team, we offer excellent customer support and technical assistance to ensure a smooth installation and answer any questions you may have along the way.
This product just includes a hydraulic top & tilt cylinder kit. We also carry top link cylinder kits and side link cylinder kits.
| Weight | N/A |
|---|---|
| Do You Have a Factory or Summit Hydraulics Rear Remote Kit? | Factory, Summit Hydraulics |
| Top Link (Max) | 810mm (32") |
| Top Link (Min) | 530mm (21") |
| Side Link (Max) | 385mm (15") |
| Side Link (Min) | 325mm (13") |
| Cylinder Type | Top & Tilt |
