Rear Hydraulic Valve Kit for Kioti CK2620, CK3520, CK4020 Series Tractors

Rear Hydraulic Valve Kit for Kioti CK2620, CK3520, CK4020 Series Tractors

Fitment: Kioti CK2620, CK3520, CK4020 Series Tractors

This all-in-one rear remote valve kit is designed to install on Kioti CK2620, CK3520, CK4020 Series Tractors to add rear remote connections. This allows you to easily control various hydraulic implements in the rear using our Summit Hydraulics joystick and/or switchbox controls. You can add two, three, or four rear remote coupler sets to your machine.

To support this kit, you can purchase one of our hydraulic cylinders. You can add a top link cylinder kit to your Kioti tractor.

Third function commonly used to add:

• Log Splitter
• Rake
• Disc Mower
• Rear Blade

(Not designed for tractors with cabs or closed cabs)

This kit will act independently from the other hydraulic valves on your machine.

NOTE: The rear remote connections on your machine will be 1/2″ Body AG ISO 5675 Female Couplers. The hoses for your implements will need 1/2″ Body AG ISO 5675 Male Couplers.

For different variations, the kit also includes two or three button momentary rocker switches that spring automatically to the neutral position. You can also choose to keep your OEM joystick if you desire.

Valve Body Features:

• Solid aluminum housing designed for rugged use
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
• Flow Rating: 15 GPM
• Aluminum Body
• 3000 PSI Rated
• Work Ports: #8 SAE (3/4 – 16 ORB) Female Thread
• Pressure & Return Ports: #10 SAE (7/8- 14 ORB) Thread

Switch Features:

• Switch Box with two or three momentary rocker switches that spring automatically to the neutral position
• Switch Box with harness
• Valve harness uses Deutsch environmentally sealed connections for great functionality in harsh weather
• Valve harness with Deutsch connectors
• Optional 10′ and 20′ Extension Harness Available

Solenoid Specifications:

• Nominal Voltage Tolerance +/- 10%
• Power Rating: 37 Watts
• Amps: 3.08
• 100% Duty Cycle

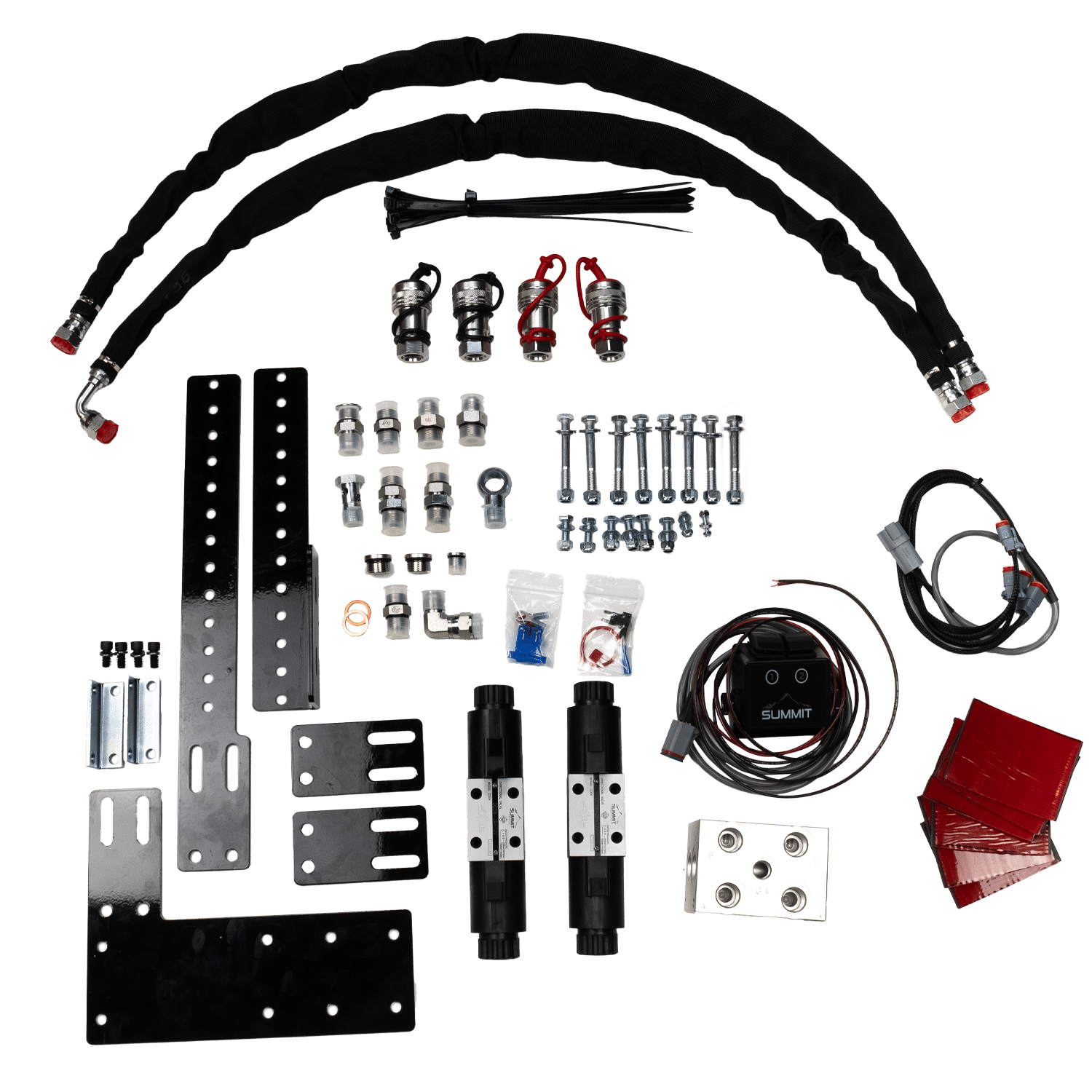

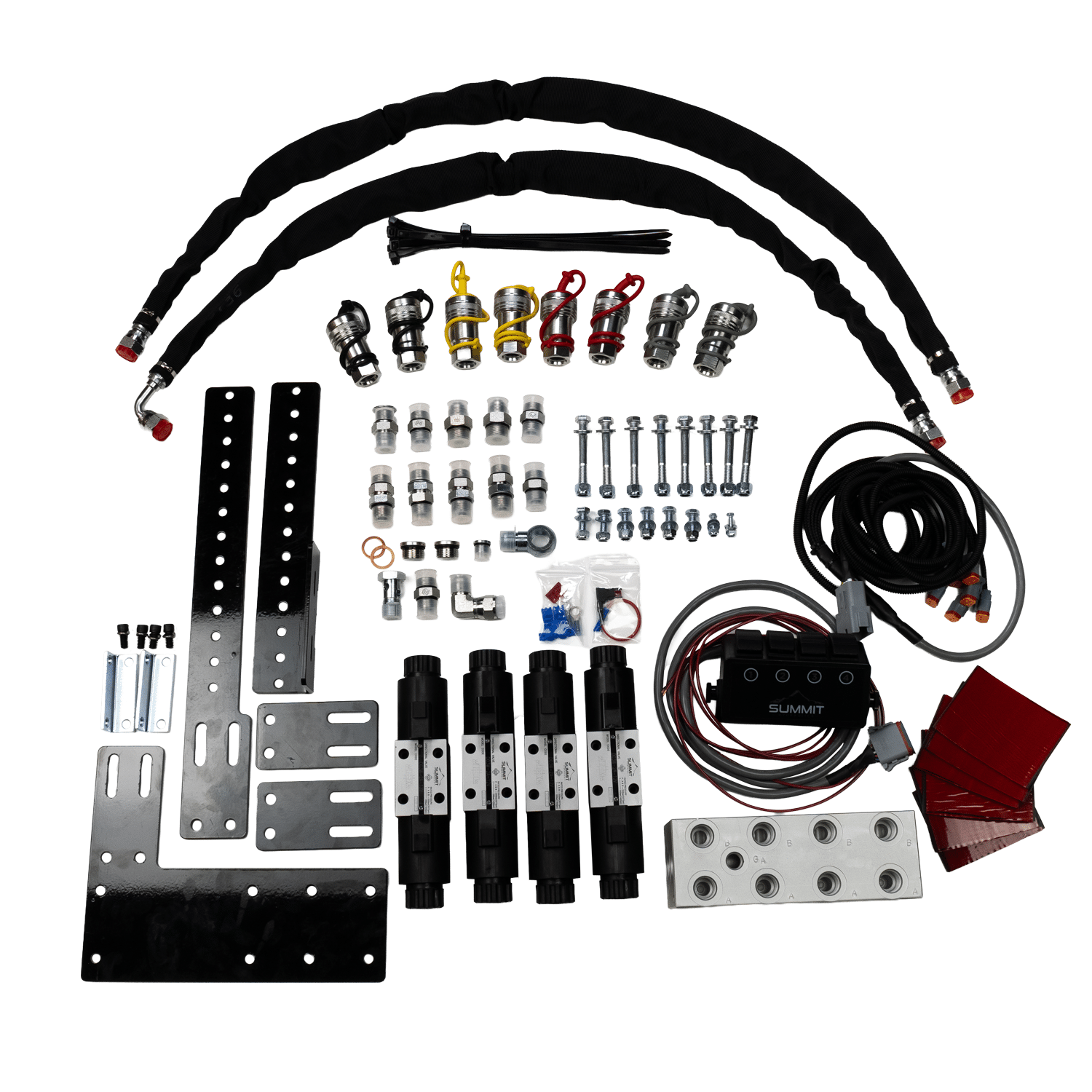

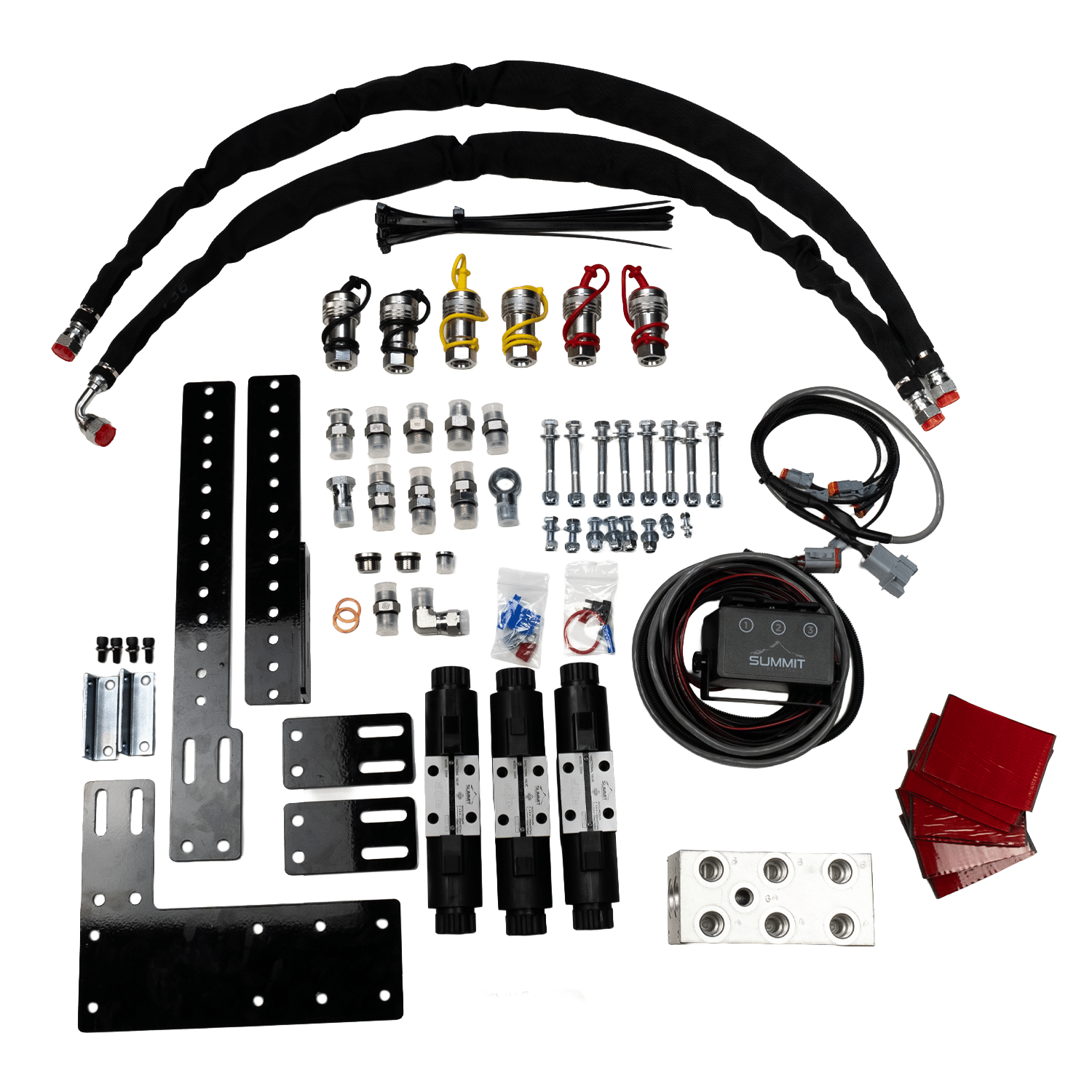

Kioti CK Rear Kit Includes:

• Control valve
• Switchbox (Two or Three Switch) – with mounting bracket
• Valve Harness(es)
• 1/2″ ISO 5675 Agricultural/Pioneer Style Couplers
• Quick coupler dust caps
• ROPS mounting bracket & hardware
• Hydraulic connection hoses for pressure and return lines and power beyond hookup
• Installation instructions

Is the Kioti CK Rear Kit not the Kioti kit you need? Check out our whole selection of Kioti Third Function Kits!
