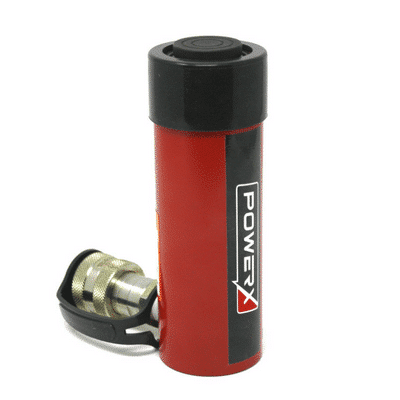

PowerX 10 Ton Cylinder, Single Acting, 4″ Stroke

PowerX 10 Ton Cylinder, Single Acting, 4″ Stroke

Engineered for high-pressure performance, the PowerX 10 Ton Single-Acting Cylinder with a 4″ stroke is built to handle lifting, pushing, and holding tasks with ease. Its rugged steel construction and heavy-duty internal spring ensure reliable operation in light industrial and commercial settings.

This single-acting design offers simple, one-direction movement—the plunger extends when high-pressure hydraulic fluid is applied and retracts using the built-in return spring.

Whether you’re lifting loads, positioning parts, or applying steady force, the PowerX Single-Acting Cylinder, Ram or Jack is built to get the job done right.

Key Features:

• 10-ton load capacity with a 4″ stroke
• Single-acting operation with robust internal spring return
• Rugged steel construction and chrome-plated plunger for durability
• Threaded collar with protective cover and base mounting holes for secure setup
• Equipped with 3/8” NPTF high-flow coupler and dust caps for clean connections
• Tough exterior coating; meets ANSI B30.1 safety standards

Applications:

• Simple lifting jobs
• Light industrial and commercial jobs

Download Catalog Page

Cross Reference Part Numbers

Manufacturer	Part Number
C10-4
BVA	H1004
Ram-Pac	RC-10-SA-4
Simplex	R104
Power Team	C104C
Enerpac	RC-104
