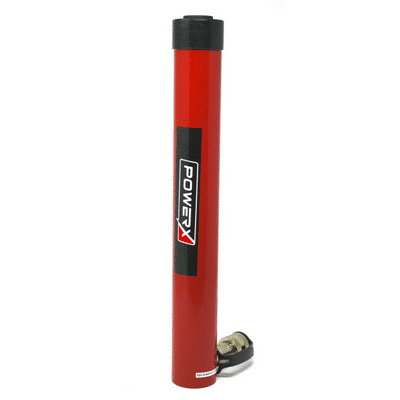

PowerX 10 Ton Cylinder, Single Acting, 14″ Stroke

PowerX 10 Ton Cylinder, Single Acting, 14″ Stroke

Built for high-pressure jobs, the PowerX Single-Acting Cylinder with a 14″ stroke delivers powerful performance for lifting, pushing, or holding tasks. With a heavy-duty internal return spring and a rugged steel construction, this jack performs reliably for light industrial and commercial tasks.

Our cylinder offers straightforward, single-direction operation. The ram’s plunger extends as high-pressure hydraulic fluid is pumped into the cylinder. Retraction occurs via an internal heavy-duty return spring.

Whether you’re lifting heavy loads, pushing components into place, or holding material steady, the PowerX 10 Ton Single-Acting Cylinder, ram or jack is purpose-built to handle the job with strength and reliability.

Key Features:

• 10-ton capacity with 14″ stroke
• Single-acting design with heavy-duty spring return
• Durable steel body with chrome-plated plunger
• Collar threads with protective cover and base mounting holes
• 3/8” NPTF high-flow coupler with dust caps
• Tough exterior finish and ANSI B30.1 compliant

Applications:

• Simple lifting jobs
• Light industrial and commercial jobs

Download Catalog Page

Cross Reference Part Numbers

Manufacturer	Part Number
C10-14
BVA	H1014
Ram-Pac	RC-10-SA-14
Simplex	R1014
Power Team	C1014C
Enerpac	RC-1014
