Hydraforce EV16-S34-0-N-70 Directional Controls, Logic Element, Vent to Open

Hydraforce EV16-S34-0-N-70 Directional Controls, Logic Element, Vent to Open

SKU: EV16-S34-0-N-70

Hydraforce Part Number: EV16-S34-0-N-70

Seal Kit: SK16-S3X-MM (x = seal option) X = seal option

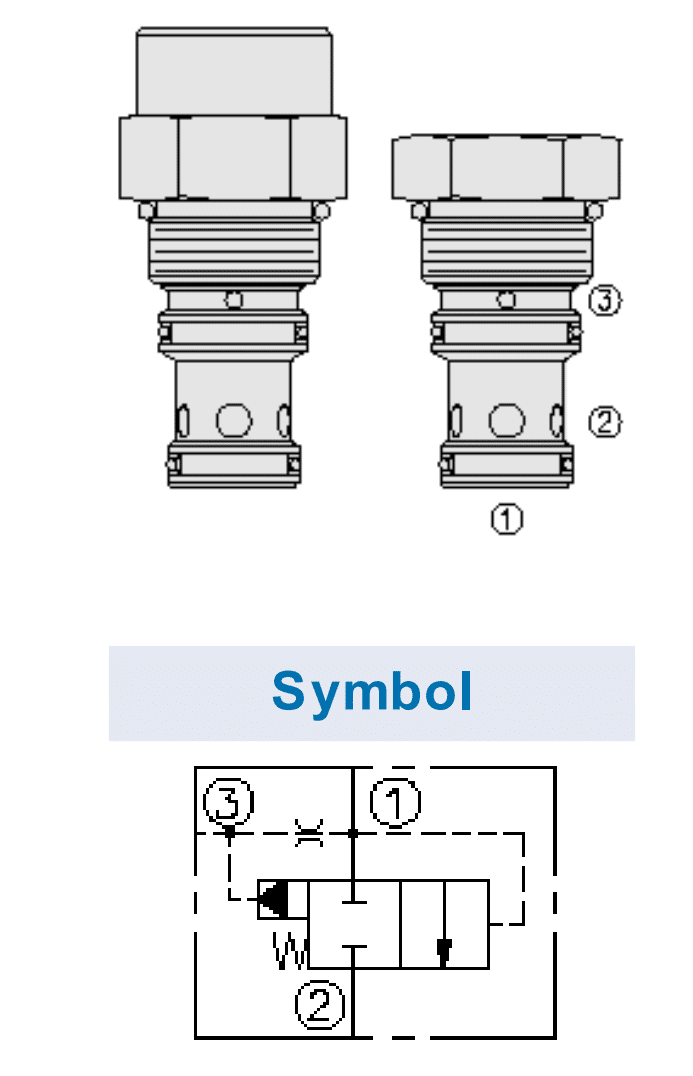

The EV16-S34 is a screw-in, cartridge style, hydraulic directional element.

The valve is a spring-biased blocking valve with an internal pilot orifice. The EV16-S34 shifts to allow full flow from port 1 to port 2 only when port 3 is vented to create a pressure drop across the internal orifice which exceeds the pressure of the bias spring value.

note: orifice disc should not be used with this product.

• Multiple function/application potential.
• Smooth shift transition.
• Low pressure drop.
• Tall cap version for higher bias springs 90, 110 and 160. The tall cap is also required when the valve is specified with manual override and the 40 size bias spring. Extra tall cap version for bias spring 240.
• Optional manual override only for 40, 90, 110, 160 and 240 psi bias springs.
• “G” metering option for metered flow control when opening.
• Industry common cavity.

Specifications

Pressure rating:

• 241 bar (3500 psi)

Flow Ratings

Flow rating:

• 189 lpm (50 gpm)

Maximum internal leakage:

• 164 ml/min (10 in³/min) At 3000 psi 207 bar

Operating fluid temperature:

• -40 to 100 °C (-40 to 212 °F) With buna N seals
• -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals
• -54 to 107 °C (-65 to 225 °F) With polyurethane seals

Storage temperature:

• -40 to 70 °C (-40 to 160 °F)

Ambient temperature:

• -40 to 70 °C (-40 to 160 °F)

Fluids:

• Mineral based or synthetic hydraulic fluid with lubricating properties

Fluid viscosity range:

• 7.4 to 420 cSt

Maximum operating contamination level:

• 20/18/14 per ISO 4406. EV16-S34T EV16-S34 (reference all sheets) d:2.3 m:2.1 1-5/16-12 un-2a thread

Cavity:

• VC16-S3

• 16-size-3-way Cavities

Cartridge installation torque:

• 62.4 to 73.2 N-m (46 to 54 ft-lb)

Orientation restriction:

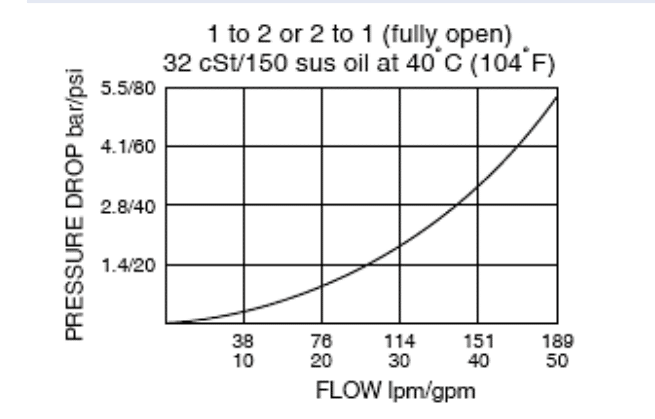

• None. D:2.3 m:2.1 flow gpm [lpm] pressure drop psi [bar] 0 30 [114] 20 [76] 10 [38] pressure drop VS flow 1 to 2 (fully open) 32 cSt at 104$f [40$c] 40 [151] 50 [189] 20 [1,4] 40 [2,8] 60 [4,1] 80 [5,5]
