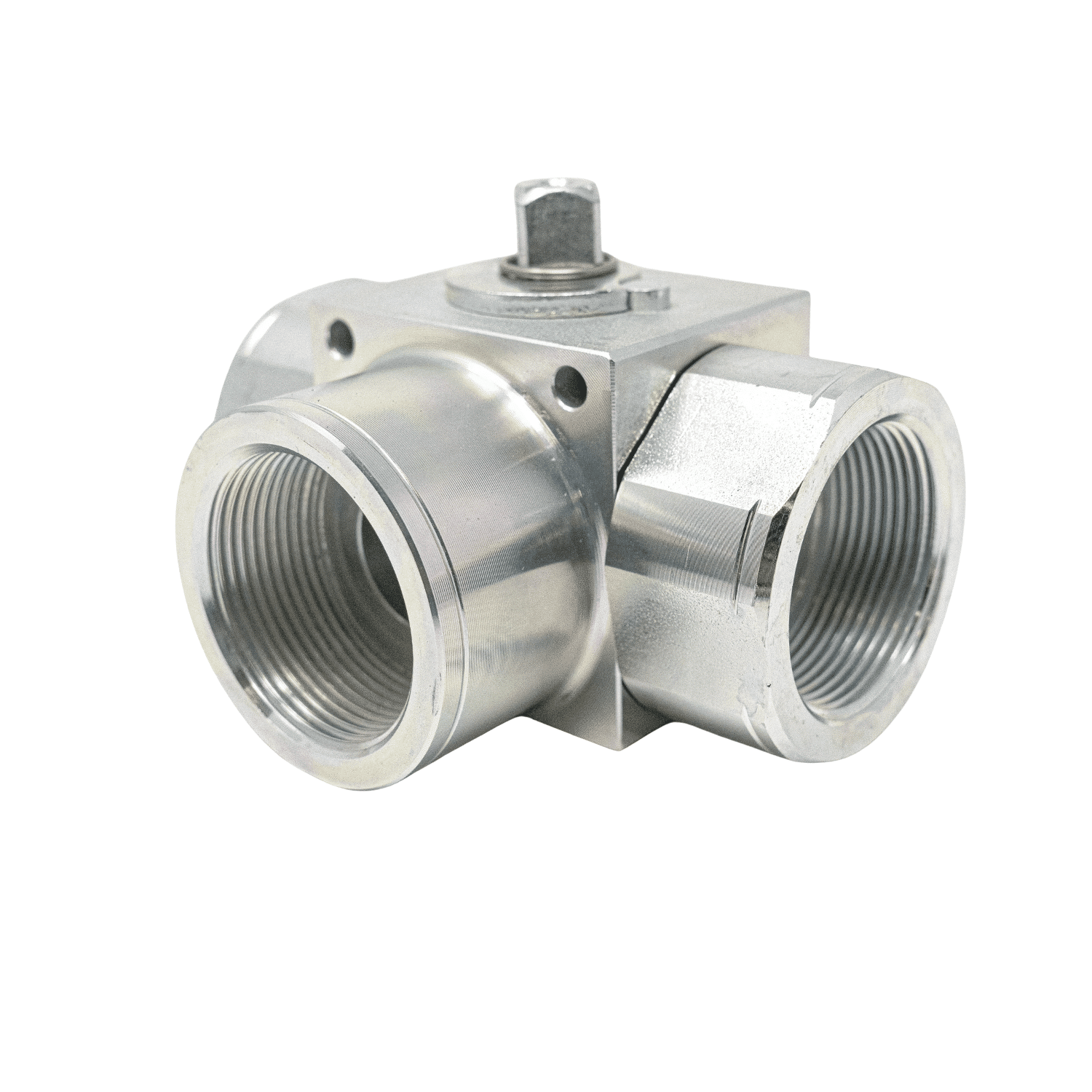

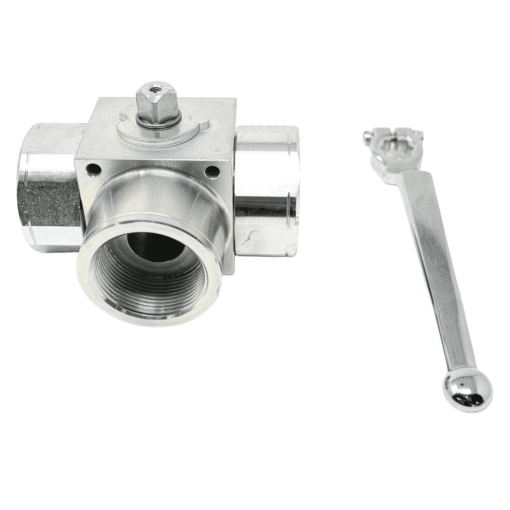

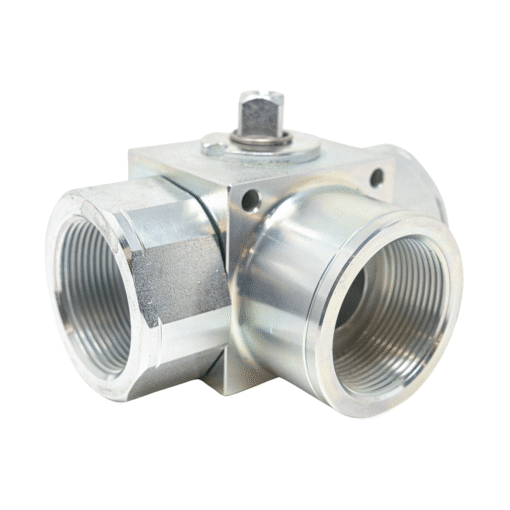

Gemels® 3 Way Ball Valve, Block Style, 1-1/2″ NPT Reduced Ports

Gemels® 3 Way Ball Valve, Block Style, 1-1/2″ NPT Reduced Ports

Interactive 3D Viewer:

SKU:3BV112-16N-R-GEM

Gemels® SKU:GE3NNR73011A000

The Gemels® 3-Way Ball Valve is a top performer in the sprayer and automotive industries, offering excellent flow control for a wide range of uses. It’s an ideal solution for mounting on sprayers used for road sign applications, providing dependable performance across various environments. Additionally, it’s well-suited for the agriculture, CNG, firefighting, steel plant industries, as well as for heavy and lifting equipment.

Built with a durable carbon steel body and finished with galvanized treatment, this ball valve ensures long-lasting strength and resistance to corrosion. The NBR stem and adapter O-ring seals provide superior leak protection, making it highly reliable for high-pressure systems. With a 1-1/2″ NPT reduced port size, it delivers precise flow control between two ports to meet different operational demands.

Capable of handling a maximum pressure of 5,075 PSI and temperatures ranging from -4 to 212°F, this valve is designed for extreme conditions. Its compact block-style design allows seamless integration into complex systems without sacrificing performance. Trust the Gemels® 3-Way Ball Valve for reliable and efficient flow control in your spraying equipment and beyond.

Features:

• Ball Valve used to provide flow control from two ports
• Galvanized Treatment
• NBR Stem O-Ring Seal
• NBR Adapter O-Ring Seal
• Carbon Steel body
• Block Style

Download STP File

Specifications:

• Port Size: 1-1/2″ NPT
• Body Size: 1-1/2″
• Max Pressure Rating: 5075 PSI
• Temperature Range: -4 to 212°F
• Flow Path: L
