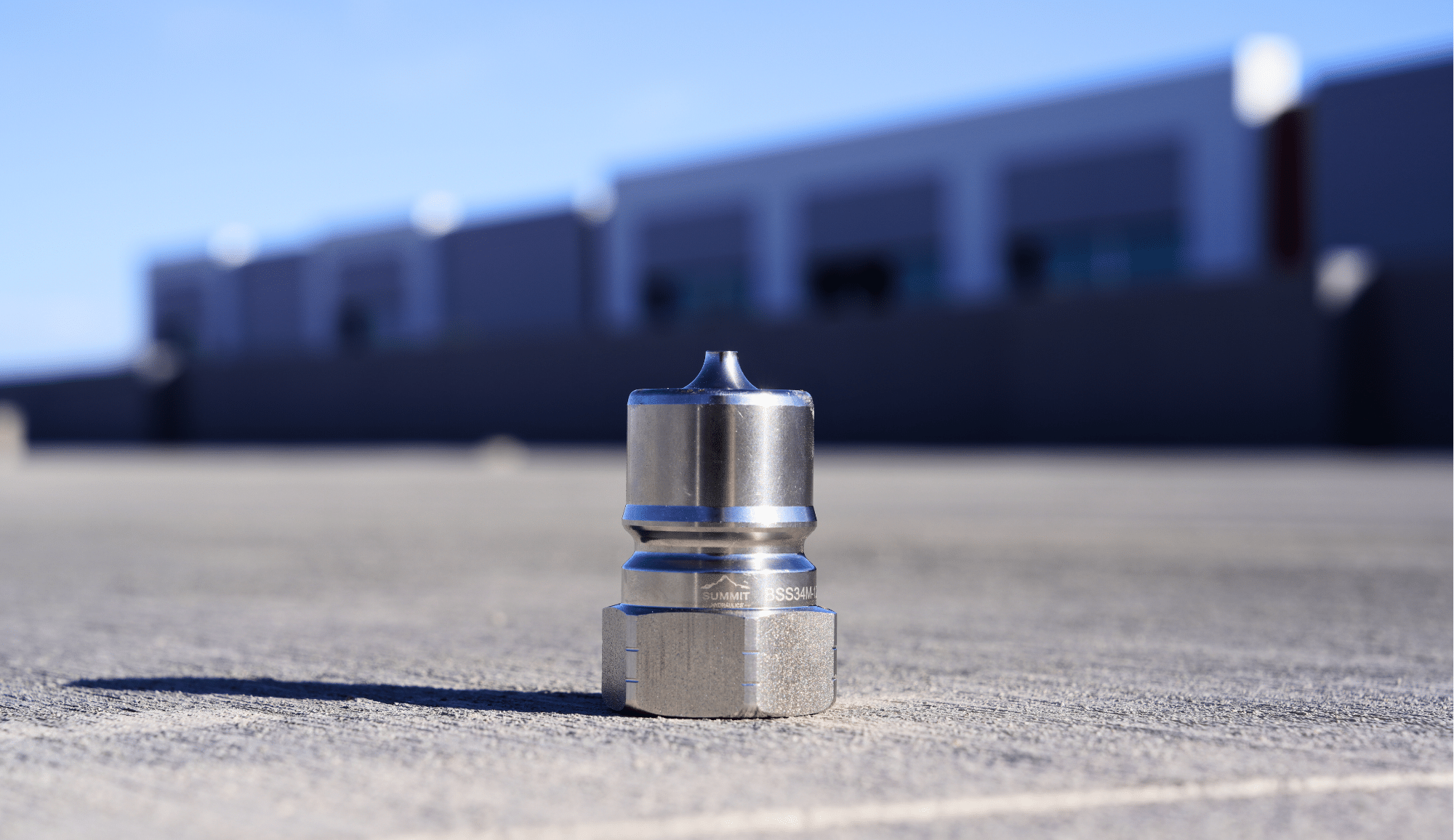

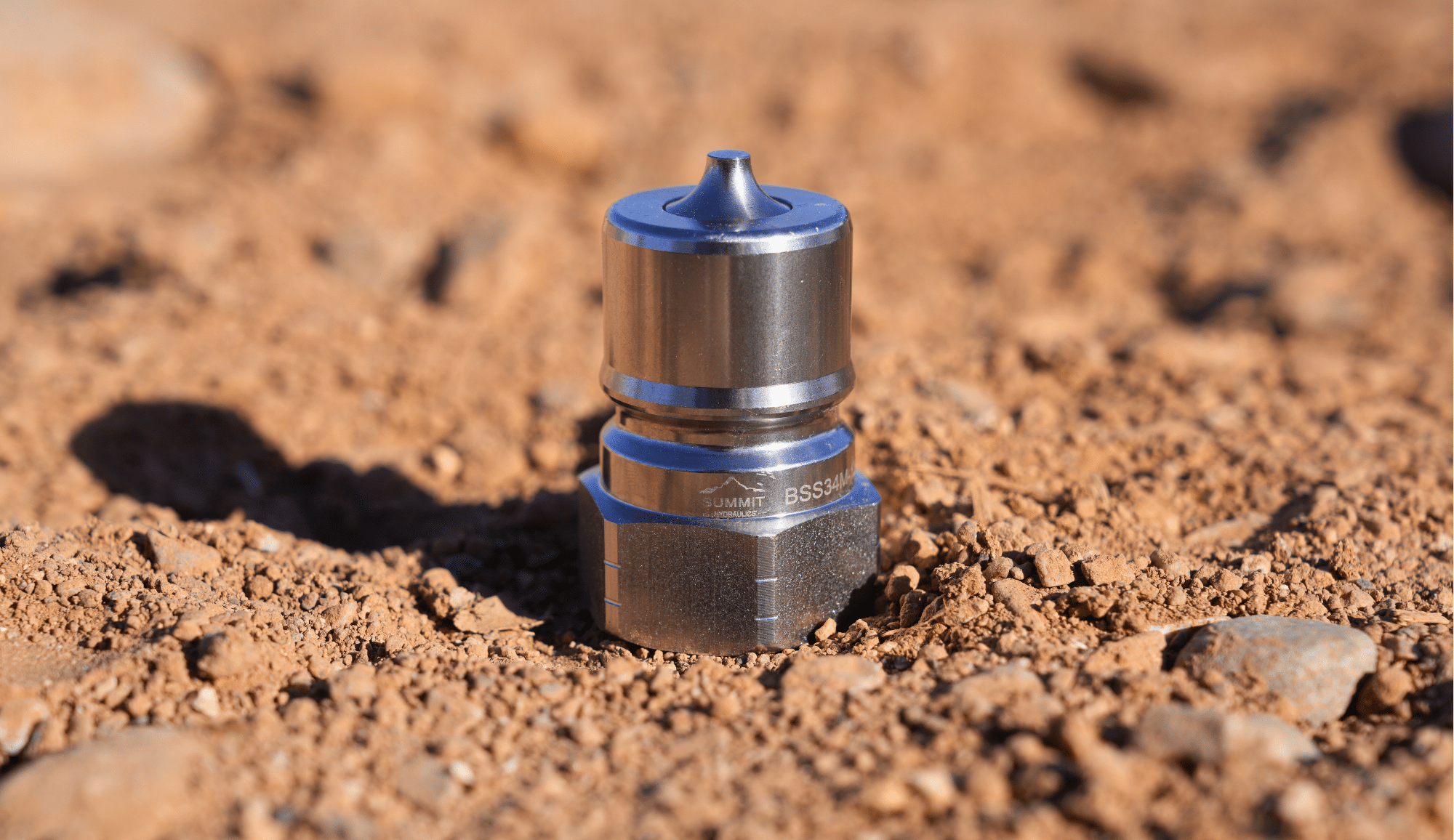

3/4″ NPT ISO 7241-B Stainless Steel Quick Disconnect Hydraulic Male Coupler

SKU: BSS34M-12N

The ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.

Body Size: 3/4″ Body

Thread Size: 3/4″ NPT Thread, Poppet Valve

This 3/4″ coupler connects to its female equivalent. We also carry a complete set, including a single male and single female coupler.

Benefits:

• Body Material: 316 or 304 Stainless Steel
• Spring Material: 304 Stainless Steel
• Locking Ball Material: 316 or 304 Stainless Steel
• Stainless Steel Body is highly resistant to corrosion
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Seal Type: Viton FKM
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 B series couplings
• Temperature Range: -15°F to +400°F

Features:

• 3600 PSI Rating
• 14,500 PSI Burst Rating (Coupled)
• Nominal Flow Rate: 28 GPM
• Max Flow Rate: 58.12 GPM
• Male Face Diameter 1.24” (51.5mm)
• Male Length: 2.28” (58mm)
• Hex: 1.34” (34mm)

316 Variant Interchangeable with:

Manufacturer	Male
SUMMIT	BSS34M-12N
Parker 60 Series	SSH6-63Y
Safeway SS10 Series	SS101-6
Faster HNV Stainless Steel	HNV 34 NPT M 2V
Snap-Tite 72 Series	SS72N12-12F
Stucchi IRBX Series	M IRBX34 NPT 804601109
Dixon H-Series	H6F6-SS
Eaton HK Series	LL6KP31
DNP HNV Series	HNV-SS316-12-12-N-NPT

Kit Includes:

• 1 Male Coupler
