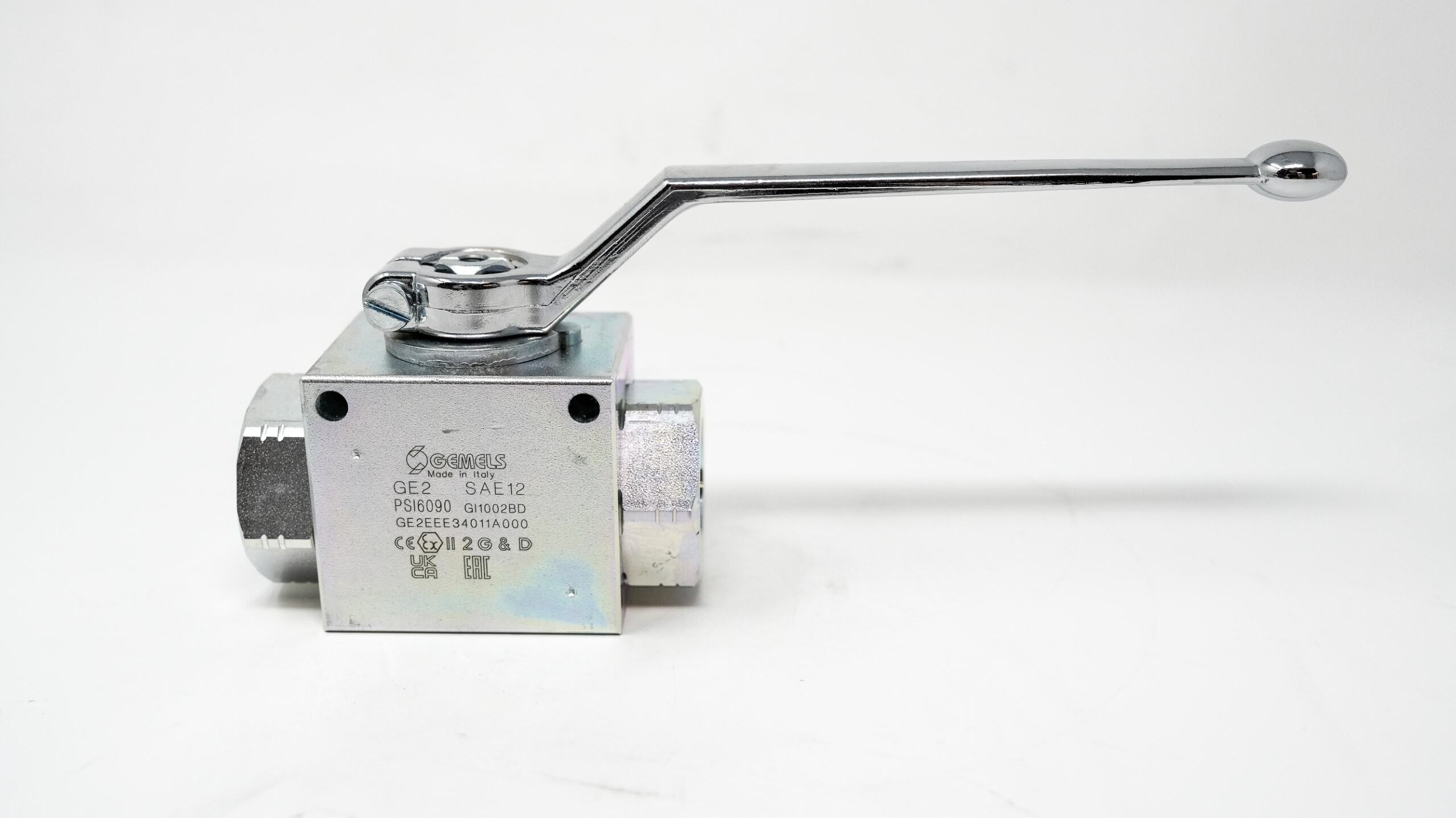

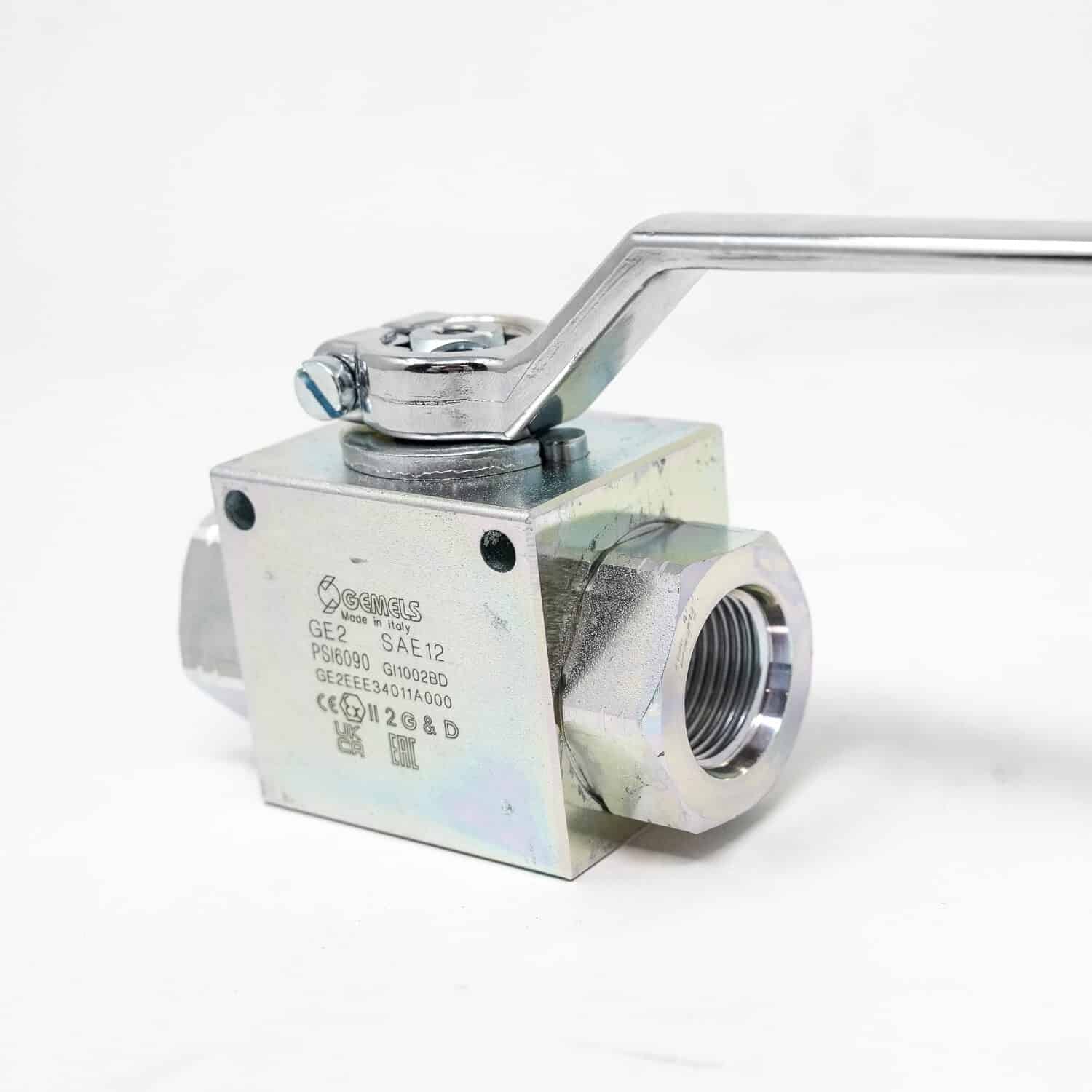

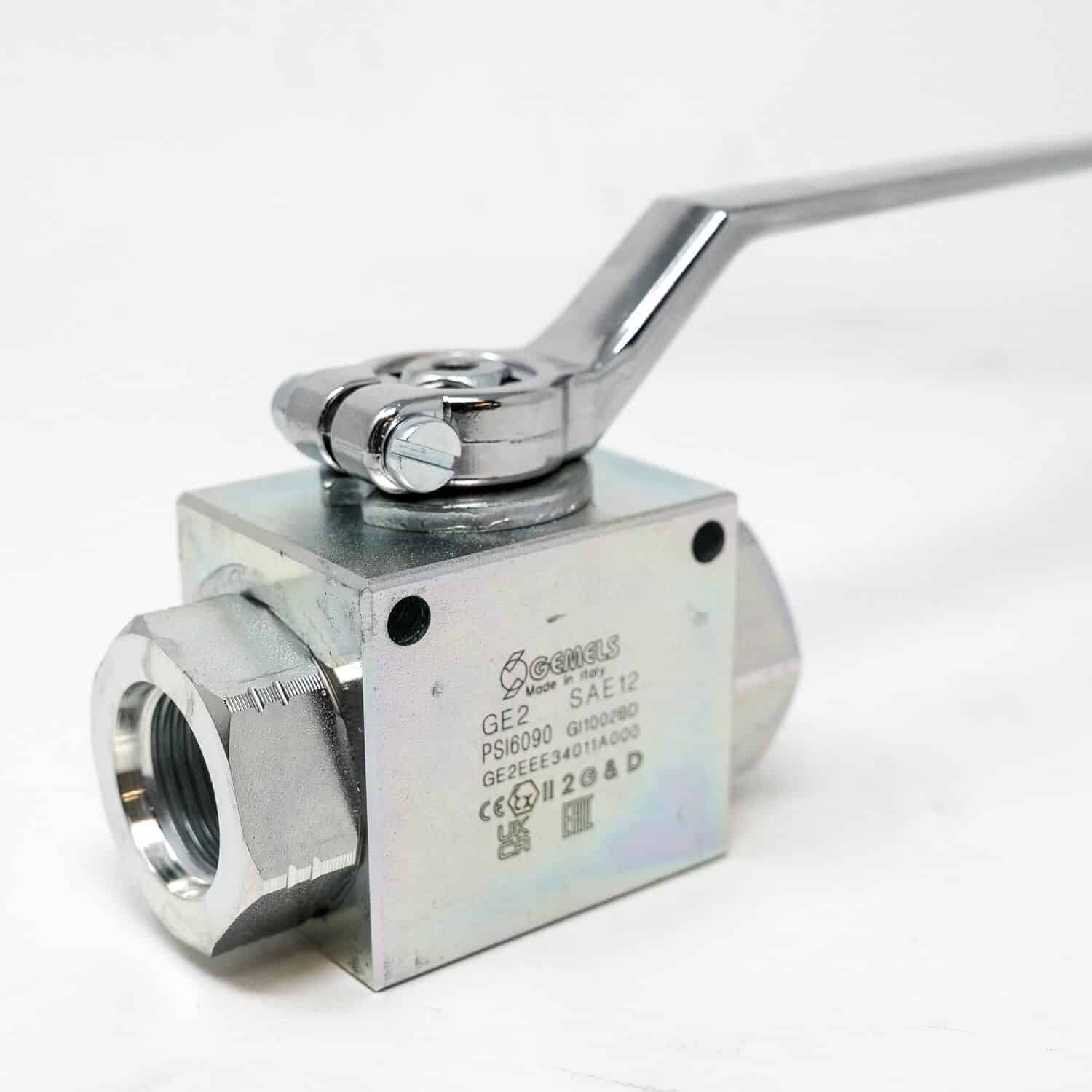

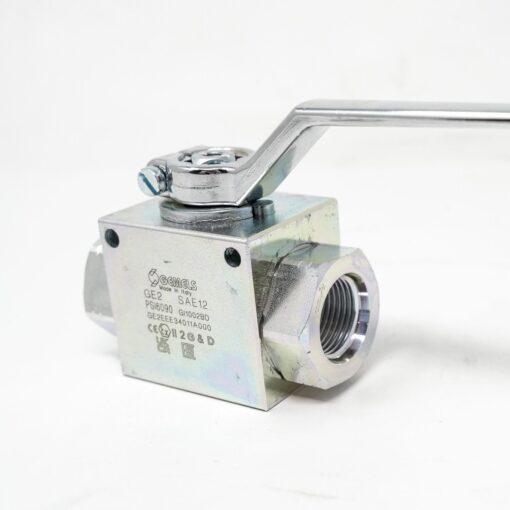

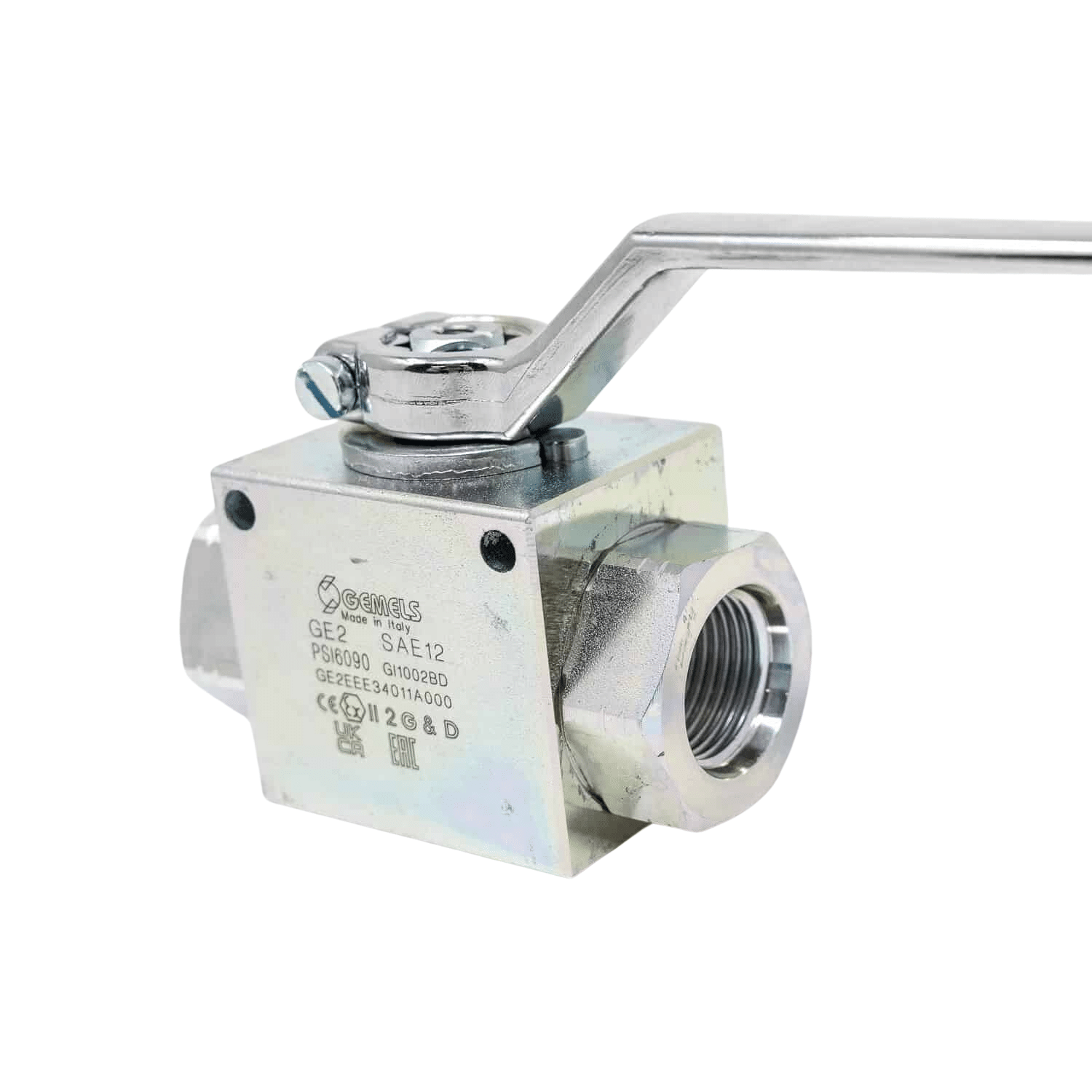

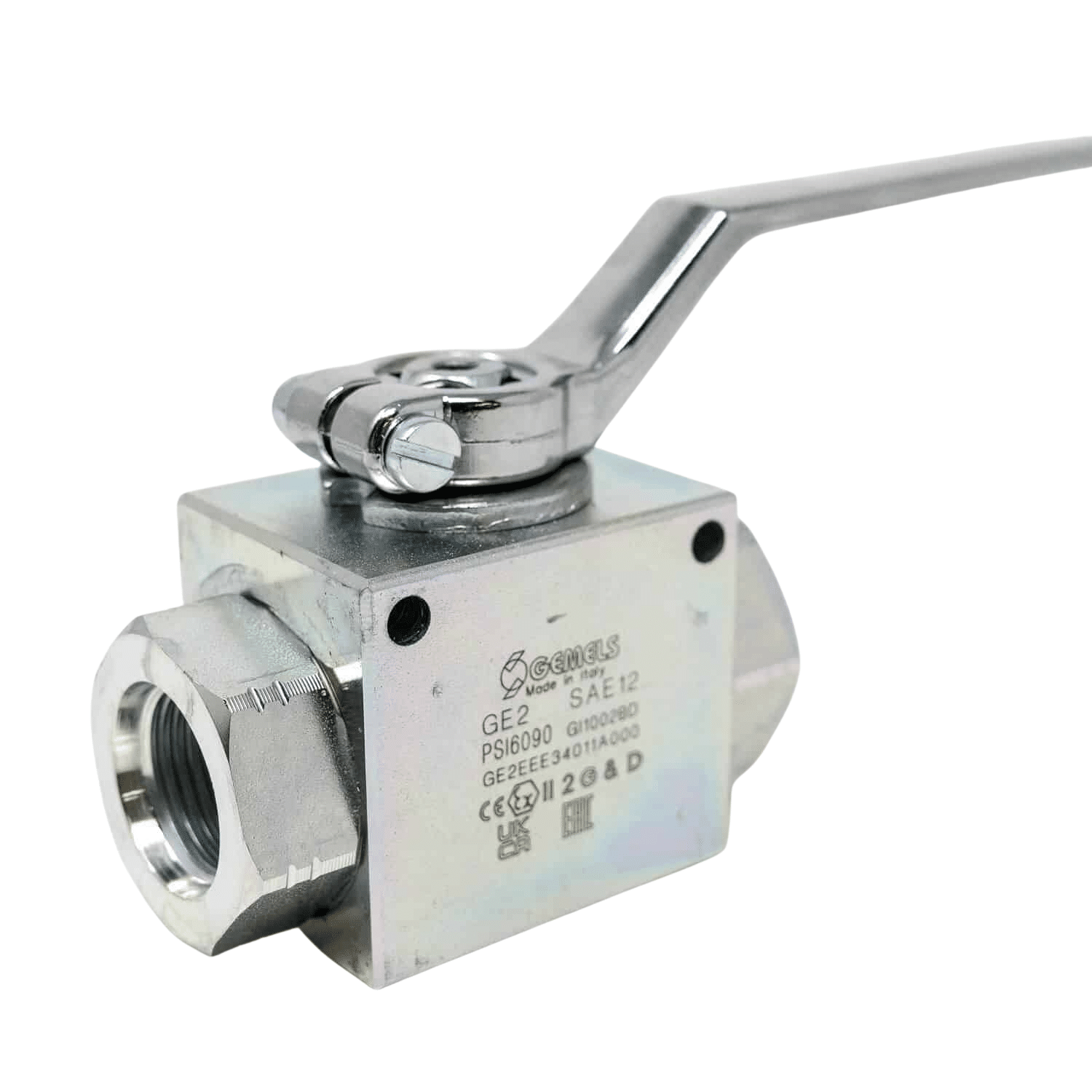

Gemels® 2 Way Ball Valve, Block Style, 3/4″ SAE Ports

Gemels® 2 Way Ball Valve, Block Style, 3/4″ SAE Ports

Interactive 3D Viewer:

SKU: 2BV34-12S-GEM

Gemels® SKU: GE2EEE34011A000

The Gemels® 2-Way Ball Valve offers reliable and versatile flow control, making it an excellent choice across multiple industries, including sprayers and automotive applications. It’s especially effective in road sign sprayers and is trusted in sectors such as agriculture, CNG, firefighting, and steel production. This valve is also ideal for use in heavy machinery and lifting equipment.

Constructed from durable carbon steel, it promises long-lasting performance. The galvanized finish provides enhanced protection against corrosion, extending its lifespan even further. Equipped with NBR O-ring seals in both the stem and adapter, the valve is designed to prevent leaks, boosting its overall reliability. Its 3/4″ SAE port size allows for precise fluid regulation between two outlets, ensuring it meets a variety of operational needs.

Built to handle pressures up to 6,090 PSI, the Gemels® 2-Way Ball Valve is engineered for demanding environments. It operates efficiently in temperatures ranging from -4°F to 212°F. Additionally, its compact block-style design simplifies installation into even the most intricate systems. In short, the Gemels® 2-Way Ball Valve delivers consistent and reliable flow control for sprayers and a wide range of other equipment.

Features:

• Ball Valve used to provide flow control from two ports
• Galvanized Treatment
• NBR Stem O-Ring Seal
• NBR Adapter O-Ring Seal
• Carbon Steel body
• Block Style

Download STP File

Specifications:

• Port Size: 3/4″ SAE
• Body Size: 3/4″
• Max Pressure Rating: 6090 PSI
• Temperature Range: -4 to 212°F
