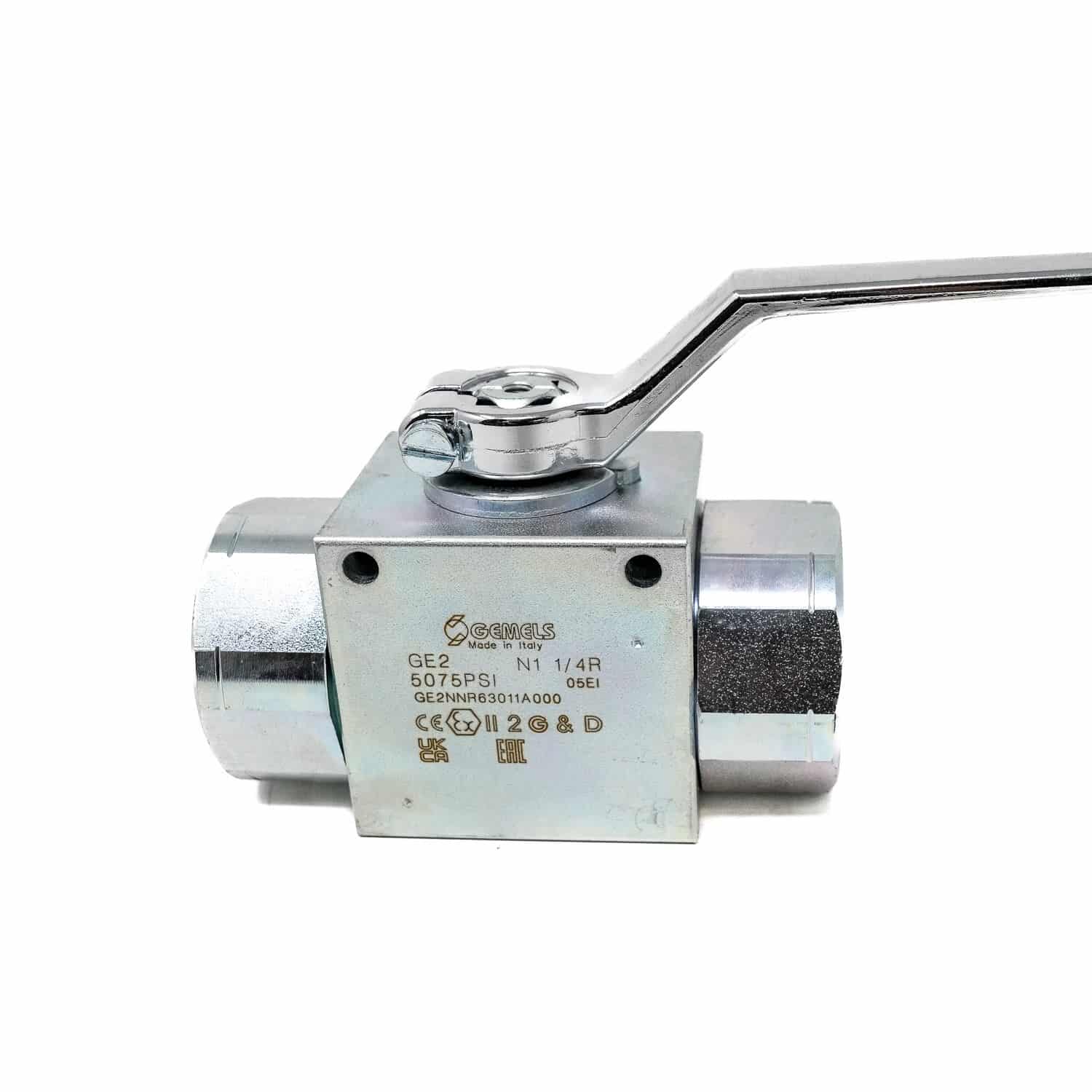

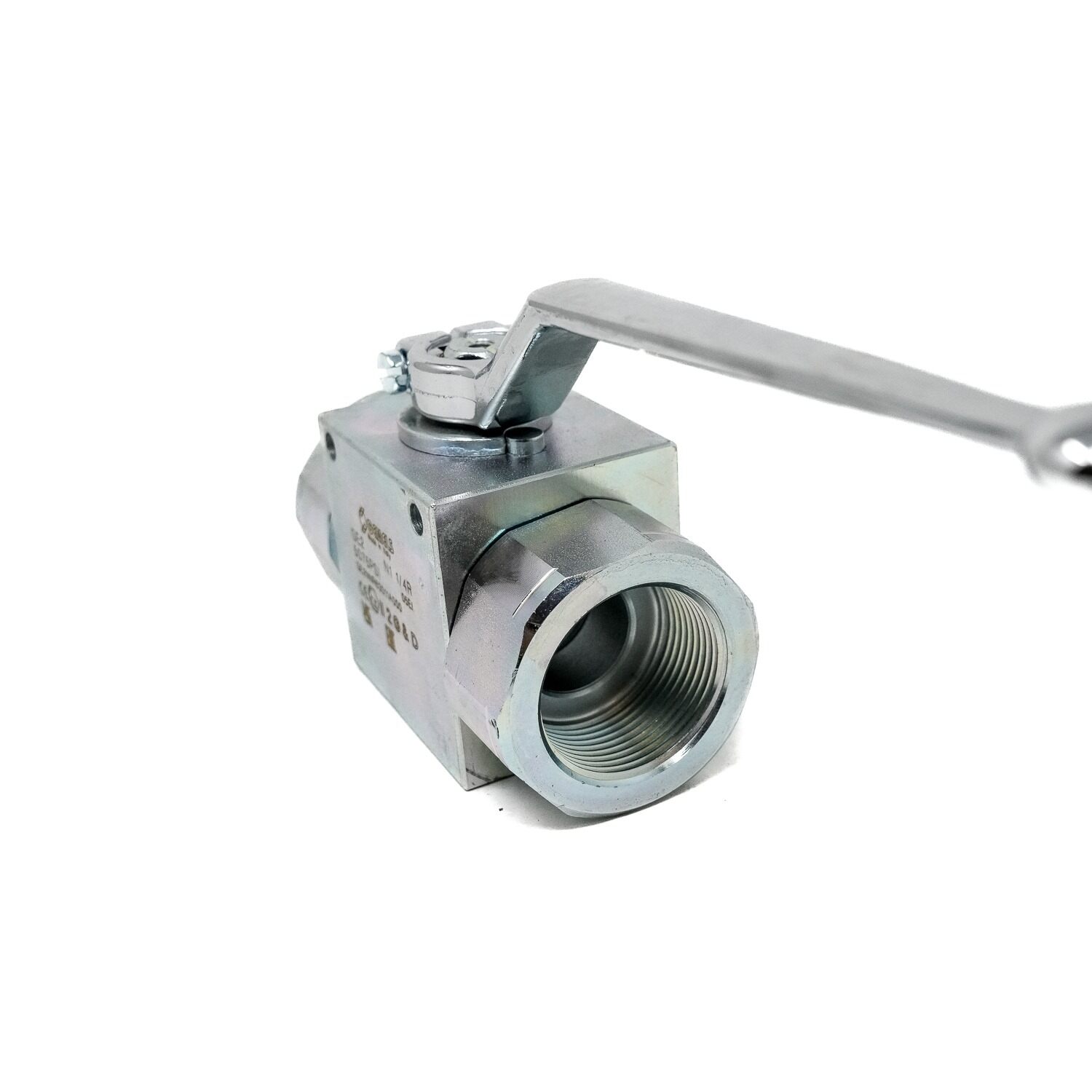

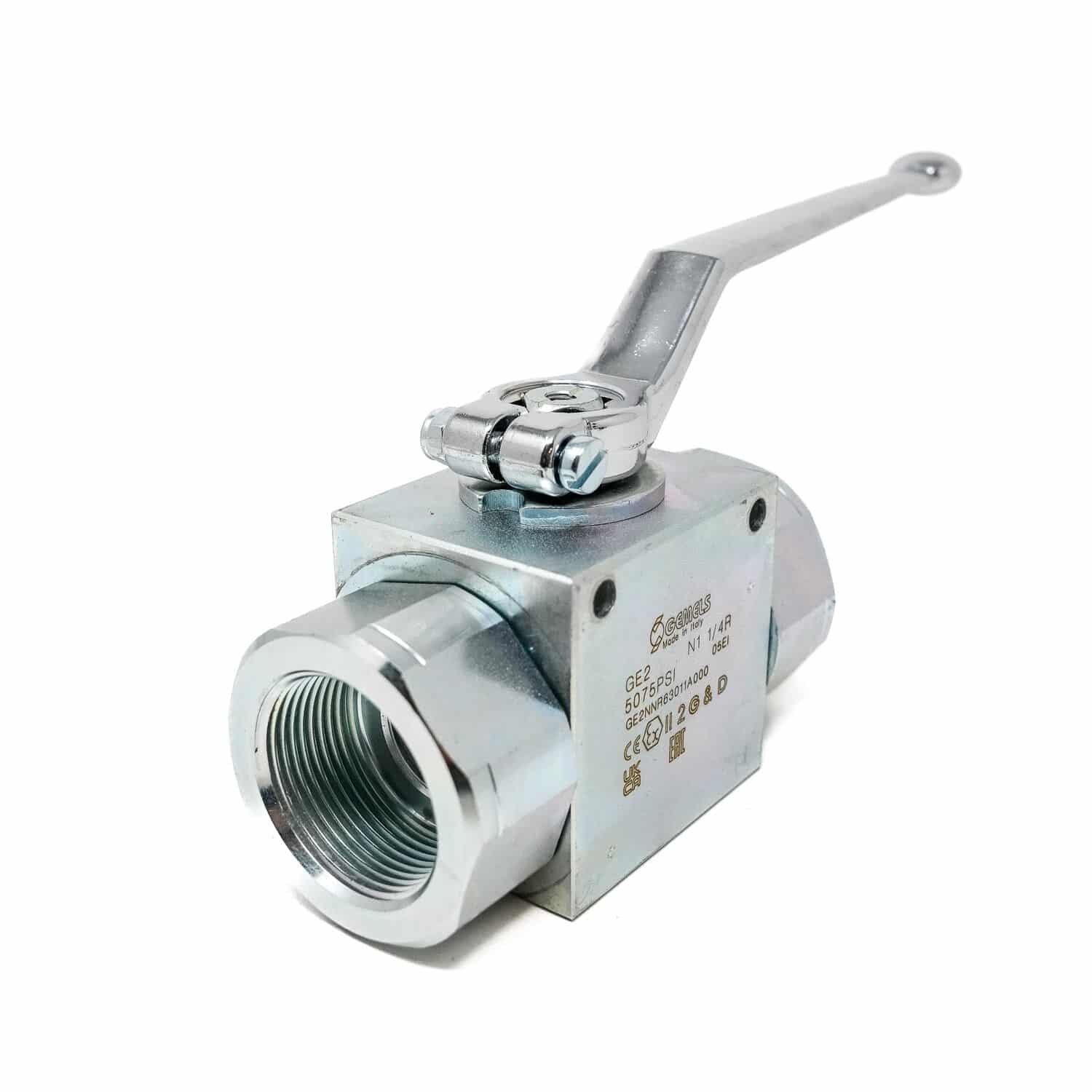

Gemels® 2 Way Ball Valve, Block Style, 1-1/4″ NPT Reduced Ports

Gemels® 2 Way Ball Valve, Block Style, 1-1/4″ NPT Reduced Ports

Interactive 3D Viewer:

SKU: 2BV114-16N-R-GEM

Gemels® SKU: GE2NNR63011A000

The Gemels® 2-Way Ball Valve is a dependable and flexible solution for effective flow control. It performs exceptionally well in both the sprayer and automotive industries, expertly regulating fluid flow for a variety of uses. Notably, it is perfect for sprayers in road sign applications. In addition, this valve supports the agriculture, CNG, firefighting, and steel production industries. It is also a strong contender for heavy machinery and lifting systems.

Built with tough carbon steel, this valve ensures lasting durability. Moreover, the galvanized coating enhances corrosion resistance, guaranteeing extended use. The NBR O-ring seals in the stem and adapter further boost leak protection, offering extra reliability in high-pressure environments. With its 1-1/4″ NPT reduced port size, the valve provides accurate flow control between two outlets. Consequently, it can meet a range of operational needs with ease.

Capable of handling pressures up to 5,075 PSI, the Gemels® 2-Way Ball Valve thrives in demanding conditions. It functions efficiently within a temperature range of -4°F to 212°F. Additionally, its compact block-style design allows for easy installation into complex systems without reducing effectiveness. Ultimately, the Gemels® 2-Way Ball Valve offers reliable and efficient flow control for sprayers and a broad range of other equipment.

Features:

• Ball Valve used to provide flow control from two ports
• Galvanized Treatment
• NBR Stem O-Ring Seal
• NBR Adapter O-Ring Seal
• Carbon Steel body
• Block Style

Download STP File

Specifications:

• Port Size: 1-1/4″ NPT
• Body Size: 1-1/4″
• Max Pressure Rating: 5075 PSI
• Temperature Range: -4 to 212°F
