3/4″ NPT ISO 7241-B Stainless Steel Quick Disconnect Hydraulic Coupler Set

Size: 3/4″ Body, 3/4″ NPT Thread, Poppet Valve

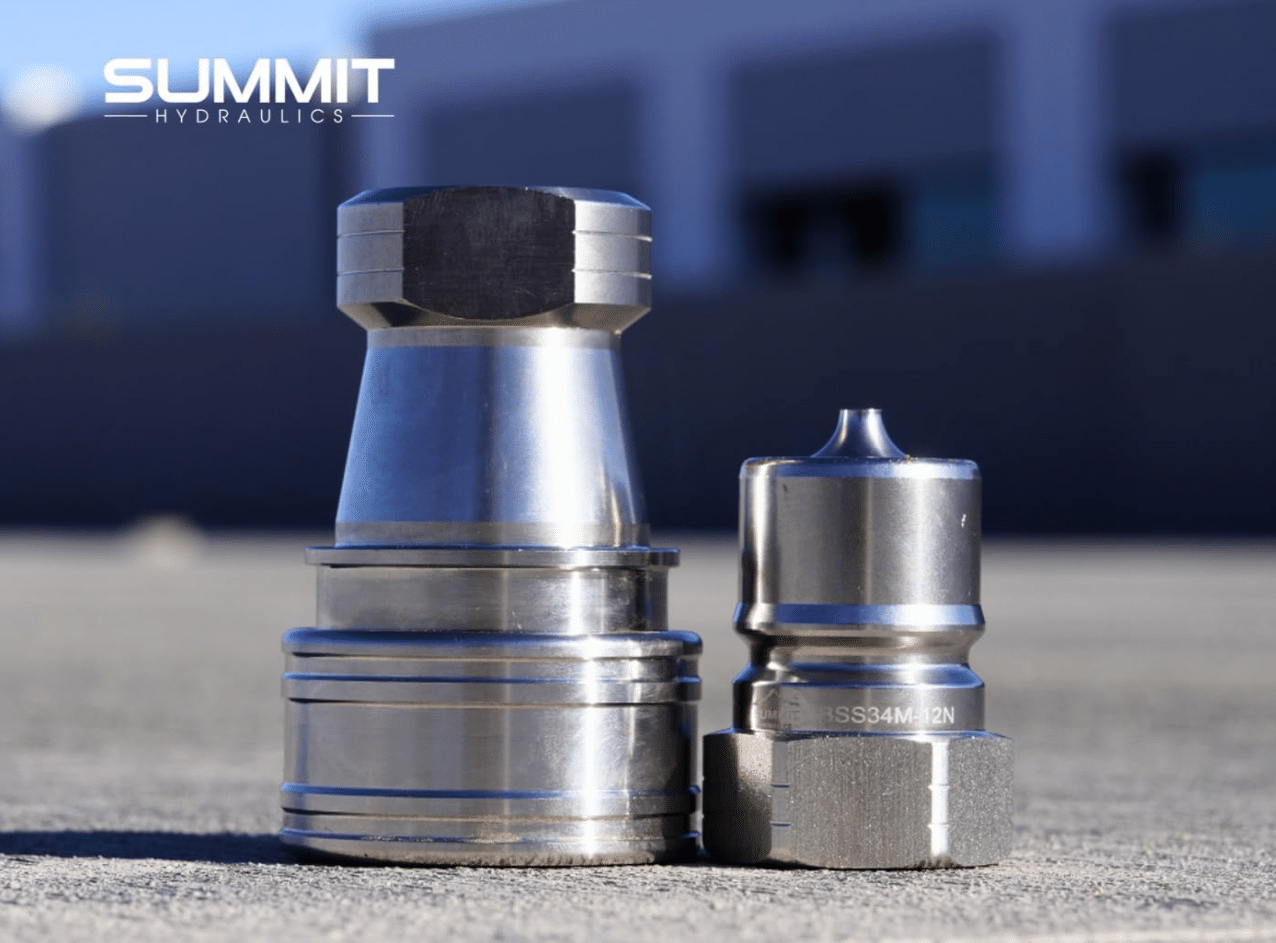

This 3/4″ coupler set consists of a male and female quick coupler.

Features:

• Body Material: 303 or 316 Stainless Steel
• Spring Material: 304 Stainless Steel
• Locking Ball Material: 316 Stainless Steel
• 316 Stainless Steel Body is highly resistant to corrosion
• Self Sealing Poppet Valve Seals Excellent Under High and Low Pressures
• Interchangeable with all ISO 7241 B series couplings
• 3,000 PSI Rating
• Nominal Flow Rate: 28 GPM
• Max Flow Rate: 58.12 GPM
• Seal Type: Viton FKM
• Temperature Range: -15°F to +400°F
• Female Face Diameter 2.05” (44mm)
• Female Length: 3.54” (90mm)
• Hex: 1.34” (27mm)
• Male Face Diameter 1.24” (31.5mm)
• Male Length: 2.28” (58mm)

Applications:

• Ideal for harsh environments such as offshore oil and gas markets
• Water Applications
• Chemical Applications
• Food Grade
• Hydraulic

304 Variant Interchangeable with:

Manufacturer	Male	Female
SUMMIT	BSS34M-12N	BSS34F-12N
Parker 60 Series	SSH6-63Y	SSH6-62Y
Safeway SS10 Series	SS101-6	SS105-6
Faster HNV Stainless Steel	HNV 34 NPT M 2V	HNV 34 NPT F 2V
Snap-Tite 72 Series	SS72N12-12F	SS72C12-12F
Stucchi IRBX Series	M IRBX34 NPT 804601109	F IRBX34 NPT 804601108
Dixon H-Series	H6F6-SS	6HF6-SS
Eaton HK Series	LL6KP31	LL6HP31
DNP HNV Series	HNV-SS316-12-12-N-NPT	HNV-SS316-12-12-C-NPT

What’s Included:

• Female Coupler
• Male Coupler
